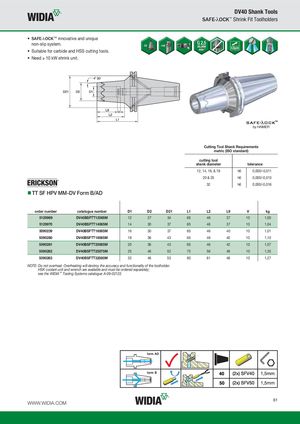

- SAFE-hOCK™ innovative and unique non-slip system.
- Suitable for carbide and HSS cutting tools.
- Need * 10 kW shrink unit.
Cutting Tool Shank Requirements metric (ISO standard)
| cutting tool shank diameter | tolerance | |
| 12, 14, 16, & 18 | h6 | 0,000/-0,011 |
| 20 & 25 | h6 | 0,000/-0,013 |
| 32 | h6 | 0,000/-0,016 |
TT SF HPV MM-DV Form B/AD
| order number | catalogue number | D1 | D2 | D21 | L1 | L2 | L9 | V | kg |
| 5129969 | DV40BSFTT12065M | 12 | 27 | 34 | 65 | 46 | 37 | 10 | 1,00 |
| 5129970 | DV40BSFTT14065M | 14 | 30 | 37 | 65 | 46 | 37 | 10 | 1,04 |
| 5090239 | DV40BSFTT16065M | 16 | 30 | 37 | 65 | 46 | 40 | 10 | 1,01 |
| 5090260 | DV40BSFTT18065M | 18 | 36 | 43 | 65 | 46 | 40 | 10 | 1,10 |
| 5090261 | DV40BSFTT20065M | 20 | 36 | 43 | 65 | 46 | 42 | 10 | 1,07 |
| 5090262 | DV40BSFTT25075M | 25 | 46 | 52 | 75 | 56 | 48 | 10 | 1,35 |
| 5090263 | DV40BSFTT32080M | 32 | 46 | 53 | 80 | 61 | 48 | 10 | 1,27 |
NOTE: Do not overheat. Overheating will destroy the accuracy and functionality of the toolholder. HSK coolant unit and wrench are available and must be ordered separately; see the WIDIA™ Tooling Systems catalogue A-09-02122.
