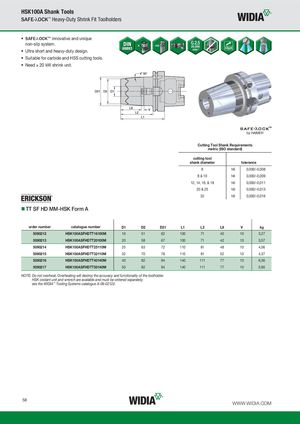

SAFE-hOCK ™ Heavy-Duty Shrink Fit Toolholders
- SAFE-hOCK™ innovative and unique non-slip system.
- Ultra short and heavy-duty design.
- Suitable for carbide and HSS cutting tools.
- Need * 20 kW shrink unit.
Cutting Tool Shank Requirements metric (ISO standard) cutting tool shank diameter tolerance
| 6 | h6 | 0,000/-0,008 | ||
| 8 & 10 | h6 | 0,000/-0,009 | ||
| 12, 14, 16, & 18 | h6 | 0,000/-0,011 | ||
| 20 & 25 | h6 | 0,000/-0,013 | ||
| 32 | h6 | 0,000/-0,016 |
TT SF HD MM-HSK Form A
| order number | catalogue number | D1 | D2 | D21 | L1 | L2 | L9 | V | kg |
| 5090212 | HSK100ASFHDTT16100M | 16 | 51 | 62 | 100 | 71 | 40 | 10 | 3,27 |
| 5090213 | HSK100ASFHDTT20100M | 20 | 58 | 67 | 100 | 71 | 42 | 10 | 3,57 |
| 5090214 | HSK100ASFHDTT25110M | 25 | 63 | 72 | 110 | 81 | 48 | 10 | 4,06 |
| 5090215 | HSK100ASFHDTT32110M | 32 | 70 | 78 | 110 | 81 | 52 | 10 | 4,37 |
| 5090216 | HSK100ASFHDTT40140M | 40 | 82 | 94 | 140 | 111 | 77 | 10 | 6,36 |
| 5090217 | HSK100ASFHDTT50140M | 50 | 82 | 94 | 140 | 111 | 77 | 10 | 5,90 |
NOTE: Do not overheat. Overheating will destroy the accuracy and functionality of the toolholder. HSK coolant unit and wrench are available and must be ordered separately; see the WIDIA™ Tooling Systems catalogue A-09-02122.
