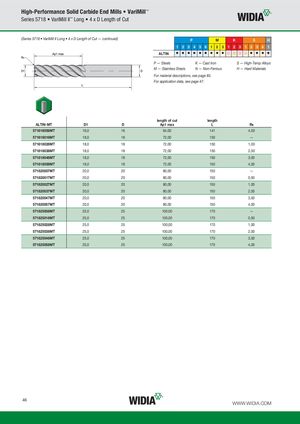

Series 5718 • VariMill II™ Long • 4 x D Length of Cut
(Series 5718 • VariMill II Long • 4 x D Length of Cut — continued)
| P | M | K | S | H | ||||||||||||||
| 1 | 2 | 3 | 4 | 5 | 6 | 1 | 2 | 3 | 1 | 2 | 3 | 1 | 2 | 3 | 4 | 1 | ||
| ALTIN | 䢇 | 䢇 | 䢇 | 䢇 | 䢇 | 䢇 | 䢇 | 䢇 | 䢇 | 嘷嘷嘷嘷 | 䢇 | 䢇 | 䢇 | 䢇 | ||||
| P — Steels | K — Cast Iron | S — High-Temp Alloys | ||||||||||||||||
| M — Stainless Steels | N — Non-Ferrous | H — Hard Materials |
For material descriptions, see page 85. For application data, see page 47.
| ALTIN-MT AlTiN - MT | D1 | D | length of cut Ap1 max | length L | R � |
| 571816056MT | 16,0 | 16 | 64,00 | 141 | 4,00 |
| 571818018MT | 18,0 | 18 | 72,00 | 150 | — |
| 571818028MT | 18,0 | 18 | 72,00 | 150 | 1,00 |
| 571818038MT | 18,0 | 18 | 72,00 | 150 | 2,00 |
| 571818048MT | 18,0 | 18 | 72,00 | 150 | 3,00 |
| 571818058MT | 18,0 | 18 | 72,00 | 150 | 4,00 |
| 571820007MT | 20,0 | 20 | 80,00 | 150 | — |
| 571820017MT | 20,0 | 20 | 80,00 | 150 | 0,50 |
| 571820027MT | 20,0 | 20 | 80,00 | 150 | 1,00 |
| 571820037MT | 20,0 | 20 | 80,00 | 150 | 2,00 |
| 571820047MT | 20,0 | 20 | 80,00 | 150 | 3,00 |
| 571820057MT | 20,0 | 20 | 80,00 | 150 | 4,00 |
| 571825008MT | 25,0 | 25 | 100,00 | 170 | — |
| 571825018MT | 25,0 | 25 | 100,00 | 170 | 0,50 |
| 571825028MT | 25,0 | 25 | 100,00 | 170 | 1,00 |
| 571825038MT | 25,0 | 25 | 100,00 | 170 | 2,00 |
| 571825048MT | 25,0 | 25 | 100,00 | 170 | 3,00 |
| 571825058MT | 25,0 | 25 | 100,00 | 170 | 4,00 |
