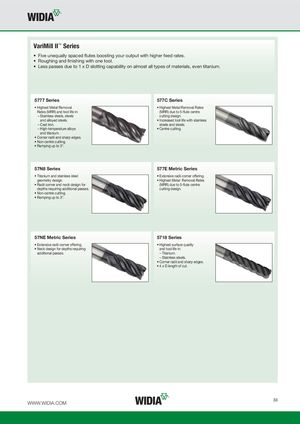

VariMill II™ Series
- Five unequally spaced fl utes boosting your output with higher feed rates.
- Roughing and fi nishing with one tool.
- Less passes due to 1 x D slotting capability on almost all types of materials, even titanium.
5777 Series 577C Series
- Highest Metal Removal
- Highest Metal Removal Rates
| Rates (MRR) and tool life in: | (MRR) due to 5-fl ute centre |
| – Stainless steels, steels | cutting design. |
| and alloyed steels. | • Increased tool life with stainless |
| – Cast iron. | steels and steels. |
| – High-temperature alloys | • Centre cutting. |
and titanium.
- Corner radii and sharp edges.
- Non-centre cutting.
- Ramping up to 3°.
57N8 Series 577E Metric Series
- Titanium and stainless steel
- Extensive radii corner offering.
geometry design. Highest Metal Removal Rates
- Radii corner and neck design for (MRR) due to 5-fl ute centre depths requiring additional passes. cutting design.
- Non-centre cutting.
- Ramping up to 3°.
57NE Metric Series 5718 Series
- Extensive radii corner offering.
- Highest surface quality
- Neck design for depths requiring and tool life in: additional passes. – Titanium.
– Stainless steels.
- Corner radii and sharp edges.
- 4 x D length of cut.
