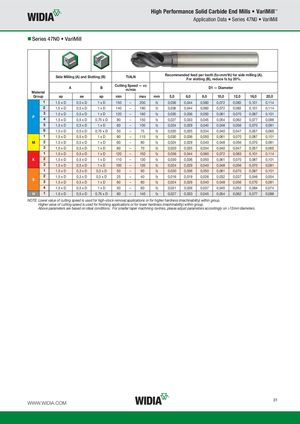

Application Data • Series 47N0 • VariMill

„ Series 47N0 • VariMill

Side Milling (A) and Slotting (B)TIALNRecommended fee For sld per toot otting (B),h (fz=mm/t reduce fzh) for side by 20%.milling (A).
ABCutting Spe m/mied — vc nD1— Diameter
Material
Groupapaeapminmaxmm5,06,08,010,012,016,020,0
11,5 x D0,5 x D1 x D150–200fz0,0360,0440,0600,0720,0830,1010,114
21,5 x D0,5 x D1 x D140–190fz0,0360,0440,0600,0720,0830,1010,114
P 31,5 x D0,5 x D1 x D120–160fz0,0300,0360,0500,0610,0700,0870,101
41,5 x D0,5 x D0,75 x D90–150fz0,0270,0330,0450,0540,0620,0770,088
51,5 x D0,5 x D1 x D60–100fz0,0240,0290,0400,0480,0560,0700,081
61,5 x D0,5 x D0,75 x D50–75fz0,0200,0250,0340,0400,0470,0570,065
11,5 x D0,5 x D1 x D90–115fz0,0300,0360,0500,0610,0700,0870,101
M 21,5 x D0,5 x D1 x D60–80fz0,0240,0290,0400,0480,0560,0700,081
31,5 x D0,5 x D1 x D60–70fz0,0200,0250,0340,0400,0470,0570,065
11,5 x D0,5 x D1 x D120–150fz0,0360,0440,0600,0720,0830,1010,114
K 21,5 x D0,5 x D1 x D110–130fz0,0300,0360,0500,0610,0700,0870,101
31,5 x D0,5 x D1 x D100–130fz0,0240,0290,0400,0480,0560,0700,081
11,5 x D0,3 x D0,3 x D50–90fz0,0300,0360,0500,0610,0700,0870,101
S 21,5 x D0,3 x D0,3 x D25–40fz0,0160,0190,0260,0320,0370,0460,054
31,5 x D0,5 x D1 x D60–80fz0,0240,0290,0400,0480,0560,0700,081
41,5 x D0,5 x D1 x D50–60fz0,0210,0260,0370,0450,0520,0640,074
H 11,5 x D0,5 x D0,75 x D80–140fz0,0270,0330,0450,0540,0620,0770,088

NOTE: Lower value of cutting speed is used for high-stock removal applications or for higher hardness (machinability) within group. Higher value of cutting speed is used for finishing applications or for lower hardness (machinability) within group. Above parameters are based on ideal conditions. For smaller taper machining centres, please adjust parameters accordingly on >12mm diameters.
