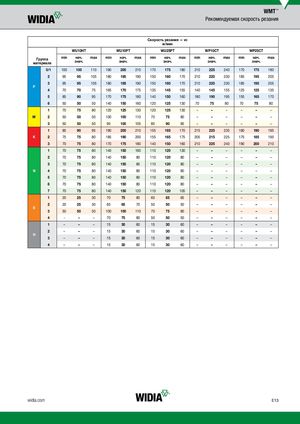

Каталог Widia токарный инструмент 2017 - страница 463
Навигация
Каталог Widia монолитный инструмент 2017
Каталог Widia инструментальная оснастка
Каталог Widia достижения 2018
Каталог Widia токарный инструмент 2020
Брошюра Widia техническое руководство
Общий каталог Widia 2017
| Скорос | ть резан м/мин | ия — vc | ||||||||||||||
| WU10HT | WU10PT | WU25PT | WP10CT | WP25CT | ||||||||||||
| Гру матер | ппа иала | min | нач. знач. | max | min | нач. знач. | max | min | нач. знач. | max | min | нач. знач. | max | min | нач. знач. | max |
| 0/1 | 100 | 100 | 110 | 190 | 200 | 210 | 170 | 175 | 180 | 210 | 225 | 240 | 170 | 175 | 180 | |
| 2 | 95 | 95 | 105 | 180 | 185 | 190 | 150 | 160 | 170 | 210 | 220 | 230 | 185 | 195 | 205 | |
| 3 | 95 | 95 | 105 | 180 | 185 | 190 | 150 | 160 | 170 | 210 | 220 | 230 | 185 | 195 | 205 | |
| P | 4 | 70 | 70 | 75 | 165 | 170 | 175 | 135 | 145 | 155 | 140 | 145 | 155 | 125 | 125 | 135 |
| 5 | 85 | 90 | 95 | 170 | 175 | 180 | 140 | 150 | 160 | 180 | 190 | 195 | 155 | 165 | 170 | |
| 6 | 50 | 50 | 50 | 140 | 150 | 160 | 120 | 125 | 130 | 70 | 75 | 80 | 70 | 75 | 80 | |
| 1 | 70 | 75 | 80 | 120 | 125 | 130 | 120 | 125 | 130 | – | – | – | – | – | – | |
| M | 2 | 50 | 50 | 50 | 100 | 100 | 110 | 70 | 75 | 80 | – | – | – | – | – | – |
| 3 | 50 | 50 | 50 | 95 | 100 | 105 | 85 | 90 | 95 | – | – | – | – | – | – | |
| 1 | 85 | 90 | 95 | 190 | 200 | 210 | 155 | 165 | 170 | 215 | 225 | 235 | 180 | 190 | 195 | |
| K | 2 | 75 | 75 | 80 | 185 | 190 | 200 | 155 | 165 | 175 | 205 | 215 | 225 | 175 | 185 | 195 |
| 3 | 70 | 75 | 80 | 170 | 175 | 180 | 140 | 150 | 160 | 210 | 225 | 240 | 190 | 200 | 210 | |
| 1 | 70 | 75 | 80 | 140 | 150 | 160 | 110 | 120 | 130 | – | – | – | – | – | – | |
| 2 | 70 | 75 | 80 | 140 | 150 | 80 | 110 | 120 | 80 | – | – | – | – | – | – | |
| 3 | 70 | 75 | 80 | 140 | 150 | 80 | 110 | 120 | 80 | – | – | – | – | – | – | |
| N | 4 | 70 | 75 | 80 | 140 | 150 | 80 | 110 | 120 | 80 | – | – | – | – | – | – |
| 5 | 70 | 75 | 80 | 140 | 150 | 80 | 110 | 120 | 80 | – | – | – | – | – | – | |
| 6 | 70 | 75 | 80 | 140 | 150 | 80 | 110 | 120 | 80 | – | – | – | – | – | – | |
| 7 | 70 | 75 | 80 | 140 | 150 | 120 | 110 | 120 | 105 | – | – | – | – | – | – | |
| 1 | 20 | 25 | 30 | 70 | 75 | 80 | 60 | 65 | 65 | – | – | – | – | – | – | |
| 2 | 20 | 25 | 30 | 65 | 65 | 70 | 50 | 50 | 50 | – | – | – | – | – | – | |
| S | 3 | 50 | 50 | 50 | 100 | 100 | 110 | 70 | 75 | 80 | – | – | – | – | – | – |
| 4 | - | – | – | 70 | 75 | 80 | 50 | 50 | 50 | – | – | – | – | – | – | |
| 1 | – | – | – | 15 | 30 | 60 | 15 | 30 | 60 | – | – | – | – | – | – | |
| 2 | – | – | – | 15 | 30 | 60 | 15 | 30 | 60 | – | – | – | – | – | – | |
| H | 3 | – | – | – | 15 | 30 | 60 | 15 | 30 | 60 | – | – | – | – | – | – |
| 4 | – | – | – | 15 | 30 | 60 | 15 | 30 | 60 | – | – | – | – | – | – |
