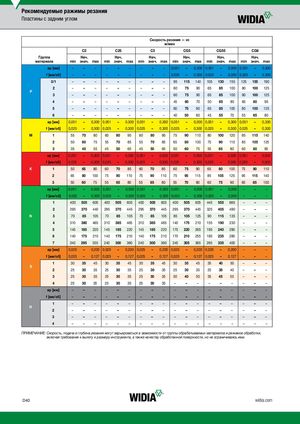

Рекомендуемые ражимы резания
Пластины с задним углом
Скорость резания — vc м/мин
| C2 | C25 | C3 | CG5 | CG55 | CG6 | |
| Группа | Нач. | Нач. | Нач. | Нач. | Нач. | Нач. |
| материала | min | знач. | max | min | знач. | max | min | знач. | max | min | знач. | max | min | знач. | max | min | знач. | max | ||
| ap [мм] | – | – | – | – | – | – | – | – | – | 0,051 | – | 0,300 0,051 | – | 0,300 0,051 | – | 0,300 | ||||
| f [мм/об] | – | – | – | – | – | – | – | – | – | 0,025 | – | 0,300 0,025 | – | 0,300 0,025 | – | 0,300 | ||||
| 0/1 | – | – | – | – | – | – | – | – | – | 95 | 115 | 140 | 105 | 130 | 155 | 125 | 155 | 190 | ||
| 2 | – | – | – | – | – | – | – | – | – | 60 | 75 | 90 | 65 | 85 | 100 | 80 | 100 | 125 |
P
| 3 | – | – | – | – | – | – | – | – | – | 60 | 75 | 90 | 65 | 85 | 100 | 80 | 100 | 125 | |
| 4 | – | – | – | – | – | – | – | – | – | 45 | 60 | 70 | 50 | 65 | 80 | 65 | 80 | 95 | |
| 5 | – | – | – | – | – | – | – | – | – | 60 | 75 | 90 | 65 | 85 | 100 | 80 | 100 | 125 | |
| 6 | – | – | – | – | – | – | – | – | – | 40 | 50 | 60 | 45 | 55 | 70 | 55 | 65 | 80 | |
| ap [мм] | 0,051 | – | 0,300 0,051 | – | 0,300 0,051 | – | 0,300 0,051 | – | 0,300 0,051 | – | 0,300 0,051 | – | 0,300 | ||||||
| f [мм/об] | 0,025 | – | 0,300 0,025 | – | 0,300 0,025 | – | 0,300 0,025 | – | 0,300 0,025 | – | 0,300 0,025 | – | 0,300 | ||||||
| M | 1 | 55 | 70 | 80 | 60 | 80 | 95 | 60 | 80 | 95 | 75 | 90 | 110 | 80 | 100 | 120 | 95 | 115 | 140 |
| 2 | 50 | 60 | 75 | 55 | 70 | 85 | 55 | 70 | 85 | 65 | 80 | 100 | 75 | 90 | 110 | 85 | 105 | 125 | |
| 3 | 35 | 45 | 55 | 45 | 50 | 65 | 45 | 50 | 65 | 50 | 60 | 75 | 55 | 65 | 80 | 60 | 80 | 95 | |
| ap [мм] | 0,051 | – | 0,300 0,051 | – | 0,300 0,051 | – | 0,300 0,051 | – | 0,300 0,051 | – | 0,300 0,051 | – | 0,300 | ||||||
| f [мм/об] | 0,025 | – | 0,300 0,025 | – | 0,300 0,025 | – | 0,300 0,025 | – | 0,300 0,025 | – | 0,300 0,025 | – | 0,300 | ||||||
| K | 1 | 50 | 65 | 80 | 60 | 70 | 85 | 60 | 70 | 85 | 60 | 75 | 90 | 65 | 80 | 100 | 75 | 90 | 110 |
| 2 | 65 | 80 | 100 | 75 | 90 | 110 | 75 | 90 | 110 | 75 | 95 | 115 | 85 | 105 | 125 | 95 | 115 | 140 | |
| 3 | 50 | 60 | 75 | 55 | 65 | 80 | 55 | 65 | 80 | 55 | 70 | 80 | 60 | 75 | 90 | 65 | 85 | 100 | |
| ap [мм] | 0,051 | – | 0,300 0,051 | – | 0,300 0,051 | – | 0,300 0,051 | – | 0,300 0,051 | – | 0,300 | – | – | – | |||||
| f [мм/об] | 0,025 | – | 0,300 0,025 | – | 0,300 0,025 | – | 0,300 0,025 | – | 0,300 0,025 | – | 0,300 | – | – | – | |||||
| 1 | 400 | 505 | 605 | 400 | 505 | 605 | 400 | 505 | 605 | 400 | 505 | 605 | 445 | 555 | 665 | – | – | – | |
| 2 | 295 | 370 | 440 | 295 | 370 | 445 | 295 | 370 | 445 | 295 | 370 | 445 | 325 | 405 | 490 | – | – | – | |
| N | 3 | 70 | 85 | 105 | 70 | 85 | 105 | 70 | 85 | 105 | 85 | 105 | 125 | 90 | 115 | 135 | – | – | – |
| 4 | 310 | 380 | 465 | 310 | 385 | 465 | 310 | 385 | 465 | 140 | 175 | 210 | 155 | 190 | 230 | – | – | – | |
| 5 | 145 | 185 | 220 | 145 | 185 | 220 | 145 | 185 | 220 | 175 | 220 | 265 | 195 | 240 | 290 | – | – | – | |
| 6 | 140 | 175 | 210 | 140 | 175 | 210 | 140 | 175 | 210 | 170 | 210 | 255 | 185 | 235 | 280 | – | – | – | |
| 7 | 240 | 295 | 355 | 240 | 300 | 360 | 240 | 300 | 360 | 245 | 305 | 365 | 265 | 335 | 400 | – | – | – | |
| ap [мм] | 0,025 | – | 0,200 0,025 | – | 0,200 0,025 | – | 0,200 0,025 | – | 0,200 0,025 | – | 0,200 | – | – | – | |||||
| f [мм/об] | 0,025 | – | 0,127 0,025 | – | 0,127 0,025 | – | 0,127 0,025 | – | 0,127 0,025 | – | 0,127 | – | – | – | |||||
| 1 | 30 | 35 | 45 | 30 | 35 | 45 | 30 | 35 | 45 | 30 | 35 | 45 | 35 | 40 | 50 | – | – | – |
S
| 2 | 25 | 30 | 35 | 25 | 30 | 35 | 25 | 30 | 35 | 25 | 30 | 35 | 25 | 35 | 40 | – | – | – | |
| 3 | 25 | 30 | 35 | 25 | 30 | 35 | 25 | 30 | 35 | 30 | 40 | 50 | 35 | 45 | 55 | – | – | – | |
| 4 | 25 | 30 | 35 | 25 | 30 | 35 | 25 | 30 | 35 | – | – | – | – | – | – | – | – | – | |
| ap [мм] | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| f [мм/об] | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| 1 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
H
| 2 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| 3 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| 4 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
ПРИМЕЧАНИЕ: Скорость, подача и глубина резания могут варьироваться в зависимости от группы обрабатываемых материалов и режимов обработки, включая требования к вылету и размеру инструмента, а также качеству обработанной поверхности, но не ограничиваясь ими.
