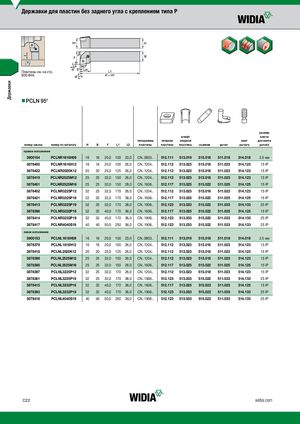

Каталог Widia токарный инструмент 2017 - страница 252
Навигация
Каталог Widia монолитный инструмент 2017
Каталог Widia инструментальная оснастка
Каталог Widia достижения 2018
Каталог Widia токарный инструмент 2020
Брошюра Widia техническое руководство
Общий каталог Widia 2017
Пластины см. на стр. B30-B46.
nnPCLN 95°
| номер заказа | номер по каталогу | H | B | F | L1 | L2 | типоразмер пластины | опорная пластина | штифт опорной пластины | съемник | рычаг | винт рычага | размер ключа для винта рычага |
| правое исполнен | ие | ||||||||||||
| 3900154 | PCLNR1616H09 | 16 | 16 | 20,0 | 100 | 23,0 | CN..0903.. | 512.111 | 513.019 | 515.018 | 511.018 | 514.018 | 2.5мм |
| 3878400 | PCLNR1616H12 | 16 | 16 | 20,0 | 100 | 26,0 | CN..1204.. | 512.112 | 513.023 | 515.018 | 511.023 | 514.123 | 15 IP |
| 3878422 | PCLNR2020K12 | 20 | 20 | 25,0 | 125 | 26,0 | CN..1204.. | 512.112 | 513.023 | 515.018 | 511.023 | 514.123 | 15 IP |
| 3878419 | PCLNR2525M12 | 25 | 25 | 32,0 | 150 | 26,0 | CN..1204.. | 512.112 | 513.023 | 515.018 | 511.023 | 514.123 | 15 IP |
| 3878401 | PCLNR2525M16 | 25 | 25 | 32,0 | 150 | 28,0 | CN..1606.. | 512.117 | 513.025 | 515.022 | 511.025 | 514.125 | 15 IP |
| 3878402 | PCLNR3225P12 | 32 | 25 | 32,0 | 170 | 26,0 | CN..1204.. | 512.112 | 513.023 | 515.018 | 511.023 | 514.123 | 15 IP |
| 3878421 | PCLNR3225P16 | 32 | 25 | 32,0 | 170 | 38,0 | CN..1606.. | 512.117 | 513.025 | 515.022 | 511.025 | 514.125 | 15 IP |
| 3878413 | PCLNR3225P19 | 32 | 25 | 32,0 | 170 | 38,0 | CN..1906.. | 512.123 | 513.033 | 515.022 | 511.033 | 514.133 | 25 IP |
| 3878396 | PCLNR3232P16 | 32 | 32 | 40,0 | 170 | 36,0 | CN..1606.. | 512.117 | 513.025 | 515.022 | 511.025 | 514.125 | 15 IP |
| 3878414 | PCLNR3232P19 | 32 | 32 | 40,0 | 170 | 36,0 | CN..1906.. | 512.123 | 513.033 | 515.022 | 511.033 | 514.133 | 25 IP |
| 3878417 | PCLNR4040S19 | 40 | 40 | 50,0 | 250 | 36,0 | CN..1906.. | 512.123 | 513.033 | 515.022 | 511.033 | 514.133 | 25 IP |
| левое исполнени | е | ||||||||||||
| 3900153 | PCLNL1616H09 | 16 | 16 | 20,0 | 100 | 23,0 | CN..0903.. | 512.111 | 513.019 | 515.018 | 511.018 | 514.018 | 2.5мм |
| 3878379 | PCLNL1616H12 | 16 | 16 | 20,0 | 100 | 26,0 | CN..1204.. | 512.112 | 513.023 | 515.018 | 511.023 | 514.123 | 15 IP |
| 3878418 | PCLNL2020K12 | 20 | 20 | 25,0 | 125 | 26,0 | CN..1204.. | 512.112 | 513.023 | 515.018 | 511.023 | 514.123 | 15 IP |
| 3878398 | PCLNL2525M12 | 25 | 25 | 32,0 | 150 | 26,0 | CN..1204.. | 512.112 | 513.023 | 515.018 | 511.023 | 514.123 | 15 IP |
| 3878380 | PCLNL2525M16 | 25 | 25 | 32,0 | 150 | 28,0 | CN..1606.. | 512.117 | 513.025 | 515.022 | 511.025 | 514.125 | 15 IP |
| 3878397 | PCLNL3225P12 | 32 | 25 | 32,0 | 170 | 26,0 | CN..1204.. | 512.112 | 513.023 | 515.018 | 511.023 | 514.123 | 15 IP |
| 3878381 | PCLNL3225P19 | 32 | 25 | 32,0 | 170 | 38,0 | CN..1906.. | 512.123 | 513.033 | 515.022 | 511.033 | 514.133 | 25 IP |
| 3878415 | PCLNL3232P16 | 32 | 32 | 40,0 | 170 | 36,0 | CN..1606.. | 512.117 | 513.025 | 515.022 | 511.025 | 514.125 | 15 IP |
| 3878393 | PCLNL3232P19 | 32 | 32 | 40,0 | 170 | 36,0 | CN..1906.. | 512.123 | 513.033 | 515.022 | 511.033 | 514.133 | 25 IP |
| 3878416 | PCLNL4040S19 | 40 | 40 | 50,0 | 250 | 36,0 | CN..1906.. | 512.123 | 513.033 | 515.022 | 511.033 | 514.133 | 25 IP |
