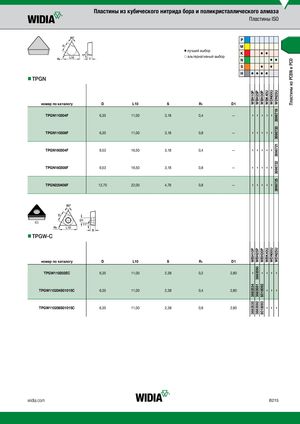

Каталог Widia токарный инструмент 2017 - страница 225
Навигация
Каталог Widia монолитный инструмент 2017
Каталог Widia инструментальная оснастка
Каталог Widia достижения 2018
Каталог Widia токарный инструмент 2020
Брошюра Widia техническое руководство
Общий каталог Widia 2017
P M лучший выбор v K
| альтернативный выбор | v | v | ||||
| j | ||||||
| S | N | |||||
| v | v |
| S | v | v | |||
| H | v | v | v | v |
nnTPGN
| номер по каталогу | D | L10 | S | Rε | D1 | |
| TPGN110304F | 6,35 | 11,00 | 3,18 | 0,4 | — |
TPGN110308F 6,35 11,00 3,18 0,8 —
TPGN160304F 9,53 16,50 3,18 0,4 —
TPGN160308F 9,53 16,50 3,18 0,8 —
TPGN220408F 12,70 22,00 4,76 0,8 —
(C)
nnTPGW-C
| номер по каталогу | D | L10 | S | Rε | D1 |
| TPGW110202EC | 6,35 | 11,00 | 2,38 | 0,2 | 2,80 |
TPGW110204S01015C 6,35 11,00 2,38 0,4 2,80
TPGW110208S01015C 6,35 11,00 2,38 0,8 2,80
