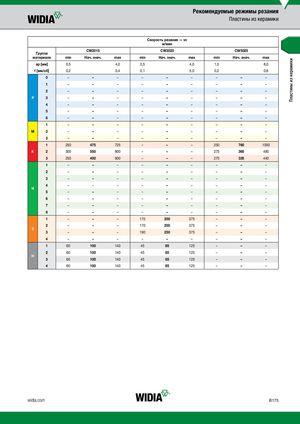

Каталог Widia токарный инструмент 2017 - страница 185
Навигация
Каталог Widia монолитный инструмент 2017
Каталог Widia инструментальная оснастка
Каталог Widia достижения 2018
Каталог Widia токарный инструмент 2020
Брошюра Widia техническое руководство
Общий каталог Widia 2017
| Ск | орость резания м/мин | — vc | |||||||
| Группа | CW2015 | CW3020 | CW5025 | ||||||
| материала | min | Нач. знач. | max | min | Нач. знач. | max | min | Нач. знач. | max |
| ap [мм] | 0,5 | 4,0 | 0,5 | 4,0 | 1,0 | 8,0 | |||
| f [мм/об] | 0,2 | 0,4 | 0,1 | 5,0 | 0,2 | 0,6 | |||
| 0 | – | – | – | – | – | – | – | – | – |
| 1 | – | – | – | – | – | – | – | – | – |
| 2 | – | – | – | – | – | – | – | – | – |
| P 3 | – | – | – | – | – | – | – | – | – |
| 4 | – | – | – | – | – | – | – | – | – |
| 5 | – | – | – | – | – | – | – | – | – |
| 6 | – | – | – | – | – | – | – | – | – |
| 1 | – | – | – | – | – | – | – | – | – |
| M 2 | – | – | – | – | – | – | – | – | – |
| 3 | – | – | – | – | – | – | – | – | – |
| 1 | 250 | 475 | 725 | – | – | – | 250 | 760 | 1000 |
| K 2 | 300 | 550 | 800 | – | – | – | 275 | 365 | 490 |
| 3 | 250 | 400 | 600 | – | – | – | 275 | 335 | 440 |
| 1 | – | – | – | – | – | – | – | – | – |
| 2 | – | – | – | – | – | – | – | – | – |
| 3 | – | – | – | – | – | – | – | – | – |
| N 4 | – | – | – | – | – | – | – | – | – |
| 5 | – | – | – | – | – | – | – | – | – |
| 6 | – | – | – | – | – | – | – | – | – |
| 7 | – | – | – | – | – | – | – | – | – |
| 8 | – | – | – | – | – | – | – | – | – |
| 1 | – | – | – | 170 | 200 | 375 | – | – | – |
| S 2 | – | – | – | 170 | 200 | 375 | – | – | – |
| 3 | – | – | – | 190 | 250 | 375 | – | – | – |
| 4 | – | – | – | – | – | – | – | – | – |
| 1 | 60 | 100 | 140 | 45 | 85 | 125 | – | – | – |
| H 2 | 60 | 100 | 140 | 45 | 85 | 125 | – | – | – |
| 3 | 60 | 100 | 140 | 45 | 85 | 125 | – | – | – |
| 4 | 60 | 100 | 140 | 45 | 85 | 125 | – | – | – |
