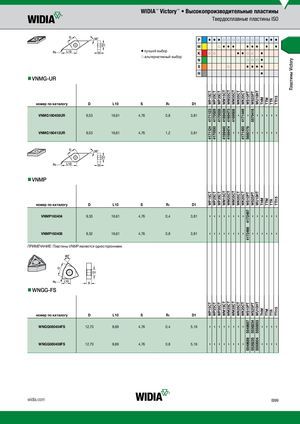

Каталог Widia токарный инструмент 2017 - страница 109
Навигация
Каталог Widia монолитный инструмент 2017
Каталог Widia инструментальная оснастка
Каталог Widia достижения 2018
Каталог Widia токарный инструмент 2020
Брошюра Widia техническое руководство
Общий каталог Widia 2017
v лучший выбор j альтернативный выбор
nnVNMG-UR
P
| v | v | v | jjjjjjjj | v | v | v | ||||||
| M | ||||||||||||
| j | v | v | v | v | v | v | v | v |
| K | j j | v | v | j j | v | |||
| N | jjj | v | ||||||
| S | j | v | v | v | v |
H v
| номер по каталогу | D | L10 | S | Rε | D1 |
| VNMG160408UR | 9,53 | 16,61 | 4,76 | 0,8 | 3,81 |
VNMG160412UR 9,53 16,61 4,76 1,2 3,81
nnVNMP
| номер по каталогу | D | L10 | S | Rε | D1 | |
| VNMP160404 | 9,53 | 16,61 | 4,76 | 0,4 | 3,81 |
VNMP160408 9,52 16,61 4,76 0,8 3,81
ПРИМЕЧАНИЕ: Пластины VNMP являются односторонними.
nnWNGG-FS
| номер по каталогу | D | L10 | S | Rε | D1 |
| WNGG080404FS | 12,70 | 8,69 | 4,76 | 0,4 | 5,16 |
WNGG080408FS 12,70 8,69 4,76 0,8 5,16
