v лучший выбор j альтернативный выбор

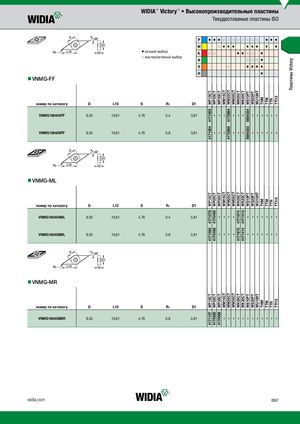

nnVNMG-FF
P
| v | v | v | jjjjjjjj | v | v | v | ||||||
| M | ||||||||||||
| j | v | v | v | v | v | v | v | v |
| K | j j | v | v | j j | v | |||
| N | jjj | v | ||||||
| S | j | v | v | v | v |
H v
| номер по каталогу | D | L10 | S | Rε | D1 |
| VNMG160404FF | 9,53 | 16,61 | 4,76 | 0,4 | 3,81 |
VNMG160408FF 9,53 16,61 4,76 0,8 3,81
nnVNMG-ML
| номер по каталогу | D | L10 | S | Rε | D1 |
| VNMG160404ML | 9,53 | 16,61 | 4,76 | 0,4 | 3,81 |
VNMG160408ML 9,53 16,61 4,76 0,8 3,81
nnVNMG-MR
| номер по каталогу | D | L10 | S | Rε | D1 |
| VNMG160408MR | 9,53 | 16,61 | 4,76 | 0,8 | 3,81 |
