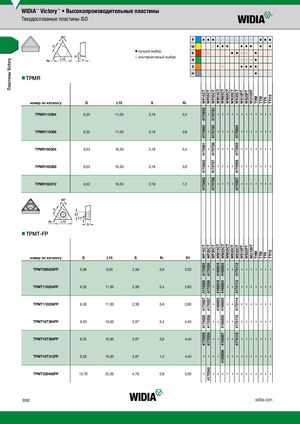

| nTPMR номер по каталогу | D S | L10 | v луч j аль | S ший выбор тернативный выбо | Rε P M K N S H р | WP15CT WP25CT WP35CT WM15CT WM25CT WM35CT v v v j j j j v v v j j j | WK05CT WK20CT WS10PT WS25PT WU10HT THM TTM TTR TTI15 j j j j j v v v v v v v v v v j j v j j j v v v v v v |
| TPMR110304 TPMR110308 | 6,35 6,35 | 11,00 11,00 | | 3,18 3,18 | 0,4 0,8 | 4170859 – 4170784 – – – 4170860 – 4170785 – – – | – – – – – – – – – – 4170954 – – – – – – – |
| TPMR160304 TPMR160308 | 9,53 9,53 | 16,50 16,50 | | 3,18 3,18 | 0,4 0,8 | 4170861 – 4170786 – – – 4170862 – 4170787 – – – | – 4170955 – – – – – – – – 4170956 – – – – – – – |
| TPMR160312 | 9,53 | 16,50 | | 3,18 | 1,2 | 4170863 – 4170788 – – – | – 4170957 – – – – – – – |
| nTPMT-FP номер по каталогу | D | L10 | S | Rε | D1 | WP15CT WP25CT WP35CT WM15CT WM25CT WM35CT | WK05CT WK20CT WS10PT WS25PT WU10HT THM TTM TTR TTI15 |
| TPMT090208FP TPMT110204FP | 5,56 6,35 | 9,63 11,00 | 2,38 2,38 | 0,8 0,4 | 2,50 2,80 | 4170025 4170335 – 4168818 4168833 – 4170026 4170336 – 4168819 4168834 – | – 4170112 – – – – – – – – 4170113 – – – – – – – |
| TPMT110208FP | 6,35 | 11,00 | 2,38 | 0,8 | 2,80 | 4170027 4170337 – 4168820 4168835 – | – 4170114 – – – – – – – |
| TPMT16T304FP | 9,53 | 16,50 | 3,97 | 0,4 | 4,40 | 4170028 4170338 – – 4168836 – | – 4170115 – – – – – – – |
| TPMT16T308FP TPMT16T312FP | 9,53 9,53 | 16,50 16,50 | 3,97 3,97 | 0,8 1,2 | 4,40 4,40 | 4170029 4170339 – – 4168837 – – – – – 4168838 – | – 4170116 – – – – – – – – – – – – – – – – |
| TPMT220408FP | 12,70 | 22,00 | 4,76 | 0,8 | 5,50 | – 4170340 – – – – | – – – – – – – – – |
