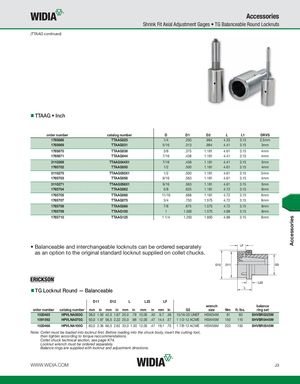

Shrink Fit Axial Adjustment Gages TG Balanceable Round Locknuts
(TTAAG continued)
TTAAG Inch
| order number | catalog number | D | D1 | D2 | L | L1 | DRVS |
| 1765666 | TTAAG025 | 1/4 | .250 | .984 | 4.33 | 3.15 | 2,5mm |
| 1765669 | TTAAG031 | 5/16 | .313 | .984 | 4.41 | 3.15 | 3mm |
| 1765670 | TTAAG038 | 3/8 | .375 | 1.181 | 4.61 | 3.15 | 4mm |
| 1765671 | TTAAG044 | 7/16 | .438 | 1.181 | 4.41 | 3.15 | 4mm |
| 3110269 | TTAAG044X1 | 7/16 | .438 | 1.181 | 4.41 | 3.15 | 5mm |
| 1765702 | TTAAG050 | 1/2 | .500 | 1.181 | 4.61 | 3.15 | 4mm |
| 3110270 | TTAAG050X1 | 1/2 | .500 | 1.181 | 4.61 | 3.15 | 5mm |
| 1765703 | TTAAG056 | 9/16 | .563 | 1.181 | 4.61 | 3.15 | 4mm |
| 3110271 | TTAAG056X1 | 9/16 | .563 | 1.181 | 4.61 | 3.15 | 5mm |
| 1765704 | TTAAG062 | 5/8 | .625 | 1.181 | 4.72 | 3.15 | 6mm |
| 1765705 | TTAAG068 | 11/16 | .688 | 1.181 | 4.72 | 3.15 | 6mm |
| 1765707 | TTAAG075 | 3/4 | .750 | 1.575 | 4.72 | 3.15 | 8mm |
| 1765708 | TTAAG088 | 7/8 | .875 | 1.575 | 4.72 | 3.15 | 8mm |
| 1765709 | TTAAG100 | 1 | 1.000 | 1.575 | 4.88 | 3.15 | 8mm |
| 1765710 | TTAAG125 | 1 1/4 | 1.250 | 1.850 | 4.88 | 3.15 | 8mm |
- Balanceable and interchangeable locknuts can be ordered separately as an option to the original standard locknut supplied on collet chucks.
TG Locknut Round — Balanceable
| order number | catalog number | mm D11 | in mm in mm D12 L | in mm L23 | in mm in LF | G3 | wrench size | Nm | ft. lbs. | balance ring set |
| 1020465 | HPVLNA050G | 38,0 1 | .50 42,5 1.67 20,0 | .79 10,05 | .40 9,7 .38 | 15/16-20 UNEF | HSW34M | 81 | 60 | SHVBR0325M |
| 1091592 | HPVLNA075G | 50,0 1 | .97 56,5 2.22 25,0 | .98 12,05 | .47 14,4 .57 | 1 1/2-12 ACME | HSW45M | 150 | 110 | SHVBR0445M |
| 1020466 | HPVLNA100G | 60,0 2 | .36 66,5 2.62 33,0 | 1.30 12,05 | .47 19,1 .75 | 1 7/8-12 ACME | HSW58M | 203 | 150 | SHVBR0545M |
Note: Collet must be loaded into locknut first. Before loading into the chuck body, insert the cutting tool, then tighten according to torque reccommendations. Collet chuck technical section, see page K74. Locknut wrench must be ordered separately. Balance rings are supplied with locknut and adjustment directions.
