- Rapid Change style.
- Solid-positive drive.
- Coolant capability by using cutting tool with coolant feature.
- For taps with DIN, ISO, and ANSI specifications.

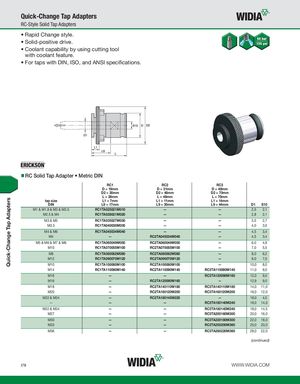

RC Solid Tap Adapter Metric DIN
| tap size DIN | RC1 D = 19mm D2 = 30mm L = 28mm L1 = 7mm L9 = 17mm | RC2 D = 31mm D2 = 48mm L = 46mm L1 = 11mm L9 = 30mm | RC3 D = 48mm D2 = 70mm L = 70mm L1 = 14mm L9 = 44mm | D1 | S10 |
| M1 & M1.8 & M3 & M3.5 | RC1TA025021M010 | — | — | 2,5 | 2,1 |
| M2.5 & M4 | RC1TA028021M020 | — | — | 2,8 | 2,1 |
| M3 & M5 | RC1TA035027M030 | — | — | 3,5 | 2,7 |
| M3.5 | RC1TA040030M035 | — | — | 4,0 | 3,0 |
| M4 & M6 | RC1TA045034M040 | — | — | 4,5 | 3,4 |
| M4 | — | RC2TA045034M040 | — | 4,5 | 3,4 |
| M5 & M6 & M7 & M8 | RC1TA060049M050 | RC2TA060049M050 | — | 6,0 | 4,9 |
| M10 | RC1TA070055M100 | RC2TA070055M100 | — | 7,0 | 5,5 |
| M8 | RC1TA080062M080 | RC2TA080062M080 | — | 8,0 | 6,2 |
| M12 | RC1TA090070M120 | RC2TA090070M120 | — | 9,0 | 7,0 |
| M10 | RC1TA100080M100 | RC2TA100080M100 | — | 10,0 | 8,0 |
| M14 | RC1TA110090M140 | RC2TA110090M140 | RC3TA110090M140 | 11,0 | 9,0 |
| M16 | — | — | RC3TA120090M160 | 12,0 | 9,0 |
| M16 | — | RC2TA120090M160 | — | 12,9 | 9,0 |
| M18 | — | RC2TA140110M180 | RC3TA140110M180 | 14,0 | 11,0 |
| M20 | — | RC2TA160120M200 | RC3TA160120M200 | 16,0 | 12,0 |
| M22 & M24 | — | RC2TA180145M220 | — | 18,0 | 4,5 |
| — | — | — | RC3TA180140M240 | 18,0 | 14,0 |
| M22 & M24 | — | — | RC3TA180145M240 | 18,0 | 14,5 |
| M27 | — | — | RC3TA200160M300 | 20,0 | 16,0 |
| M30 | — | — | RC3TA220180M300 | 22,0 | 18,0 |
| M33 | — | — | RC3TA250200M360 | 25,0 | 20,0 |
| M36 | — | — | RC3TA280220M360 | 28,0 (con | 22,0 tinued) |
