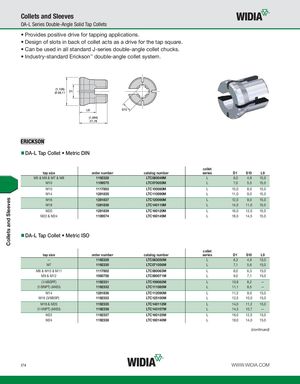

DA-L Series Double-Angle Solid Tap Collets
- Provides positive drive for tapping applications.
- Design of slots in back of collet acts as a drive for the tap square.
- Can be used in all standard J-series double-angle collet chucks.
- Industry-standard Erickson™ double-angle collet system.
DA-L Tap Collet Metric DIN
| tap size | order number | catalog number | collet series | D1 | S10 | L9 |
| M5 & M6 & M7 & M8 | 1192328 | LTC060049M | L | 6,0 | 4,9 | 15,0 |
| M10 | 1109575 | LTC070055M | L | 7,0 | 5,5 | 15,0 |
| M10 | 1117803 | LTC100080M | L | 10,0 | 8,0 | 15,0 |
| M14 | 1281835 | LTC110090M | L | 11,0 | 9,0 | 15,0 |
| M16 | 1281837 | LTC120090M | L | 12,0 | 9,0 | 15,0 |
| M18 | 1281838 | LTC140110M | L | 14,0 | 11,0 | 15,0 |
| M20 | 1281839 | LTC160120M | L | 16,0 | 12,0 | 15,0 |
| M22 & M24 | 1109574 | LTC180145M | L | 18,0 | 14,5 | 15,0 |
DA-L Tap Collet Metric ISO
| tap size | order number | catalog number | collet series | D1 | S10 | L9 |
| — | 1192329 | LTC063050M | L | 6,3 | 4,9 | 15,0 |
| M7 | 1192330 | LTC071056M | L | 7,1 | 5,6 | 15,0 |
| M8 & M10 & M11 | 1117802 | LTC080063M | L | 8,0 | 6,3 | 15,0 |
| M9 & M12 | 1093758 | LTC090071M | L | 9,0 | 7,1 | 15,0 |
| (1/4BSPF) | 1192331 | LTC109082M | L | 10,9 | 8,2 | — |
| (1/8NPT) (ANSI) | 1192332 | LTC111085M | L | 11,1 | 8,5 | — |
| M14 | 1281836 | LTC112090M | L | 11,2 | 9,0 | 15,0 |
| M16 (3/8BSP) | 1192333 | LTC125100M | L | 12,5 | 10,0 | 15,0 |
| M18 & M20 | 1192335 | LTC140112M | L | 14,0 | 11,2 | 15,0 |
| (1/4NPT) (ANSI) | 1192336 | LTC143107M | L | 14,3 | 10,7 | — |
| M22 | 1192337 | LTC160125M | L | 16,0 | 12,5 | 15,0 |
| M24 | 1192338 | LTC180140M | L | 18,0 | 14,0 | 15,0 |
(continued)
