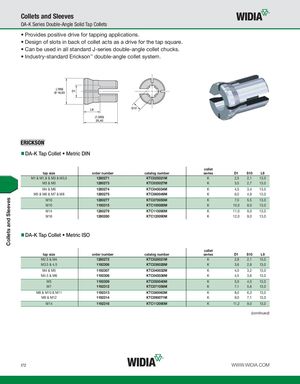

DA-K Series Double-Angle Solid Tap Collets
- Provides positive drive for tapping applications.
- Design of slots in back of collet acts as a drive for the tap square.
- Can be used in all standard J-series double-angle collet chucks.
- Industry-standard Erickson™ double-angle collet system.
DA-K Tap Collet Metric DIN
| tap size | order number | catalog number | collet series | D1 | S10 | L9 |
| M1 & M1,8 & M3 & M3,5 | 1280271 | KTC025021M | K | 2,5 | 2,1 | 13,0 |
| M3 & M5 | 1280273 | KTC035027M | K | 3,5 | 2,7 | 13,0 |
| M4 & M6 | 1280274 | KTC045034M | K | 4,5 | 3,4 | 13,0 |
| M5 & M6 & M7 & M8 | 1280275 | KTC060049M | K | 6,0 | 4,9 | 13,0 |
| M10 | 1280277 | KTC070055M | K | 7,0 | 5,5 | 13,0 |
| M10 | 1192315 | KTC100080M | K | 10,0 | 8,0 | 13,0 |
| M14 | 1280279 | KTC110090M | K | 11,0 | 9,0 | 13,0 |
| M16 | 1280280 | KTC120090M | K | 12,0 | 9,0 | 13,0 |
DA-K Tap Collet Metric ISO
| tap size | order number | catalog number | collet series | D1 | S10 | L9 |
| M2.5 & M4 | 1280272 | KTC028021M | K | 2,8 | 2,1 | 13,0 |
| M3.5 & 4.5 | 1192306 | KTC036028M | K | 3,6 | 2,8 | 13,0 |
| M4 & M5 | 1192307 | KTC040032M | K | 4,0 | 3,2 | 13,0 |
| M4.5 & M6 | 1192308 | KTC045036M | K | 4,5 | 3,6 | 13,0 |
| M5 | 1192309 | KTC050040M | K | 5,0 | 4,0 | 13,0 |
| M7 | 1192312 | KTC071056M | K | 7,1 | 5,6 | 13,0 |
| M8 & M10 & M11 | 1192313 | KTC080063M | K | 8,0 | 6,3 | 13,0 |
| M9 & M12 | 1192314 | KTC090071M | K | 9,0 | 7,1 | 13,0 |
| M14 | 1192316 | KTC112090M | K | 11,2 | 9,0 | 13,0 |
(continued)
