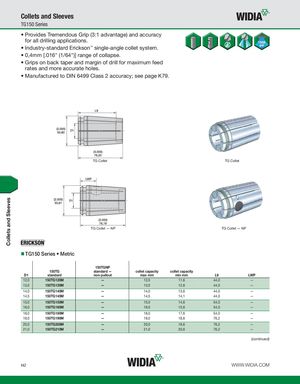

Collets and Sleeves TG150 Series • Provides Tremendous Grip (3:1 advantage) and accuracy for all drilling applications. • Industry-standard Erickson™ single-angle collet system. • 0,4mm [.016" (1/64")] range of collapse. • Grips on back taper and margin of drill for maximum feed rates and more accurate holes. • Manufactured to DIN 6499 Class 2 accuracy; see page K79. TG Collet TG Collet TG Collet — NP TG Collet — NP TG150 Series • Metric 150TGNP 150TG standard — collet capacity collet capacity D1 standard non-pullout max mm min mm L9 LWP 12,0 150TG120M — 12,0 11,6 44,0 — 13,0 150TG130M — 13,0 12,6 44,0 — 14,0 150TG140M — 14,0 13,6 44,0 — 14,5 150TG145M — 14,5 14,1 44,0 — 15,0 150TG150M — 15,0 14,6 54,0 — 16,0 150TG160M — 16,0 15,6 54,0 — 18,0 150TG180M — 18,0 17,6 54,0 — 19,0 150TG190M — 19,0 18,6 76,2 — 20,0 150TG200M — 20,0 19,6 76,2 — 21,0 150TG210M — 21,0 20,6 76,2 — (continued) I42 WWW.WIDIA.COM Collets and Sleeves
