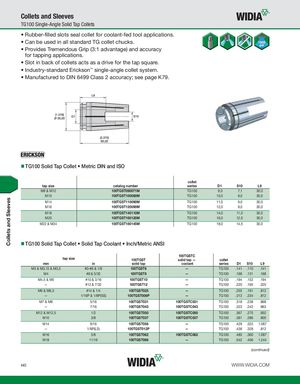

Collets and Sleeves TG100 Single-Angle Solid Tap Collets • Rubber-filled slots seal collet for coolant-fed tool applications. • Can be used in all standard TG collet chucks. • Provides Tremendous Grip (3:1 advantage) and accuracy for tapping applications. • Slot in back of collets acts as a drive for the tap square. • Industry-standard Erickson™ single-angle collet system. • Manufactured to DIN 6499 Class 2 accuracy; see page K79. TG100 Solid Tap Collet • Metric DIN and ISO collet tap size catalog number series D1 S10 L9 M9 & M12 100TGST090071M TG100 9,0 7,1 30,0 M10 100TGST100080M TG100 10,0 8,0 30,0 M14 100TGST110090M TG100 11,0 9,0 30,0 M16 100TGST120090M TG100 12,0 9,0 30,0 M18 100TGST140110M TG100 14,0 11,0 30,0 M20 100TGST160120M TG100 16,0 12,0 30,0 M22 & M24 100TGST180145M TG100 18,0 14,5 30,0 TG100 Solid Tap Collet • Solid Tap Coolant • Inch/Metric ANSI tap size 100TGSTC100TGSTsolid tap —collet mm in solid tap coolant series D1 S10 L9 M3 & M3,15 & M3,5 #0-#6 & 1/8 100TGST6 — TG100 .141 .110 .141 M4 #8 & 5/32 100TGST8 — TG100 .168 .131 .168 M4,5 & M5 #10 & 3/16 100TGST10 — TG100 .194 .152 .194 — #12 & 7/32 100TGST12 — TG100 .220 .165 .220 M6 & M6,3 #14 & 1/4 100TGST025 — TG100 .255 .191 .812 — 1/16P & 1/8P(SS) 100TGST006P — TG100 .313 .234 .812 M7 & M8 5/16 100TGST031 100TGSTC031 TG100 .318 .238 .868 — 7/16 100TGST043 100TGSTC043 TG100 .323 .242 .963 M12 & M12,5 1/2 100TGST050 100TGSTC050 TG100 .367 .275 .932 M10 3/8 100TGST037 100TGSTC037 TG100 .381 .286 .900 M14 9/16 100TGST056 — TG100 .429 .322 1.087 — 1/8P(LS) 100TGST012P — TG100 .438 .328 .812 M16 5/8 100TGST062 100TGSTC062 TG100 .480 .360 1.087 M18 11/16 100TGST068 — TG100 .542 .406 1.244 (continued) I40 WWW.WIDIA.COM Collets and Sleeves
