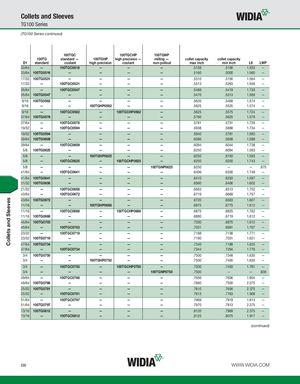

Collets and Sleeves TG100 Series (TG100 Series continued) 100TGC 100TGCHP 100TGNP 100TG standard — 100TGHP high precision — milling — collet capacity collet capacity D1 standard coolant high precision coolant non-pullout max inch min inch L9 LWP 33/64 — 100TGC0516 — — — .5156 .5106 1.553 — 33/64 100TG0516 — — — — .5160 .5000 1.560 — 17/32 100TG0531 — — — — .5310 .5156 1.564 — 17/32 — 100TGC0531 — — — .5313 .5263 1.558 — 35/64 — 100TGC0547 — — — .5469 .5419 1.720 — 35/64 100TG0547 — — — — .5470 .5313 1.569 — 9/16 100TG0562 — — — — .5620 .5469 1.574 — 9/16 — — 100TGHP0562 — — .5625 .5525 1.574 — 9/16 — 100TGC0562 — 100TGCHP0562 — .5625 .5575 1.724 — 37/64 100TG0578 — — — — .5780 .5625 1.579 — 37/64 — 100TGC0578 — — — .5781 .5731 1.729 — 19/32 — 100TGC0594 — — — .5938 .5888 1.734 — 19/32 100TG0594 — — — — .5940 .5781 1.583 — 39/64 100TG0609 — — — — .6090 .5938 1.588 — 39/64 — 100TGC0609 — — — .6094 .6044 1.738 — 5/8 100TG0625 — — — — .6250 .6094 1.593 — 5/8 — — 100TGHP0625 — — .6250 .6150 1.593 — 5/8 — 100TGC0625 — 100TGCHP0625 — .6250 .6200 1.743 — 5/8 — — — — 100TGNP0625 .6250 — — .875 41/64 — 100TGC0641 — — — .6406 .6356 1.748 — 41/64 100TG0641 — — — — .6410 .6250 1.597 — 21/32 100TG0656 — — — — .6560 .6406 1.602 — 21/32 — 100TGC0656 — — — .6563 .6513 1.752 — 43/64 — 100TGC0672 — — — .6719 .6669 1.757 — 43/64 100TG0672 — — — — .6720 .6563 1.607 — 11/16 — — 100TGHP0688 — — .6875 .6775 1.612 — 11/16 — 100TGC0688 — 100TGCHP0688 — .6875 .6825 1.762 — 11/16 100TG0688 — — — — .6880 .6719 1.612 — 45/64 100TG0703 — — — — .7030 .6875 1.612 — 45/64 — 100TGC0703 — — — .7031 .6981 1.767 — 23/32 — 100TGC0719 — — — .7188 .7138 1.771 — 23/32 100TG0719 — — — — .7190 .7031 1.621 — 47/64 100TG0734 — — — — .7340 .7188 1.625 — 47/64 — 100TGC0734 — — — .7344 .7294 1.776 — 3/4 100TG0750 — — — — .7500 .7348 1.630 — 3/4 — — 100TGHP0750 — — .7500 .7400 1.630 — 3/4 — 100TGC0750 — 100TGCHP0750 — .7500 .7450 1.781 — 3/4 — — — — 100TGNP0750 .7500 — — .938 49/64 — 100TGC0766 — — — .7656 .7606 1.904 — 49/64 100TG0766 — — — — .7660 .7500 2.375 — 25/32 100TG0781 — — — — .7810 .7656 2.375 — 25/32 — 100TGC0781 — — — .7813 .7763 1.908 — 51/64 — 100TGC0797 — — — .7969 .7919 1.913 — 51/64 100TG0797 — — — — .7970 .7813 2.375 — 13/16 100TG0812 — — — — .8120 .7969 2.375 — 13/16 — 100TGC0812 — — — .8125 .8075 1.917 — (continued) I36 WWW.WIDIA.COM Collets and Sleeves
