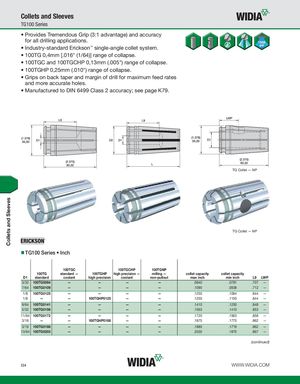

- Provides Tremendous Grip (3:1 advantage) and accuracy for all drilling applications.
- Industry-standard Erickson™ single-angle collet system.
- 100TG 0,4mm [.016" (1/64)] range of collapse.
- 100TGC and 100TGCHP 0,13mm (.005") range of collapse.
- 100TGHP 0,25mm (.010") range of collapse.
- Grips on back taper and margin of drill for maximum feed rates and more accurate holes.
- Manufactured to DIN 6499 Class 2 accuracy; see page K79.
TG Collet — NP
TG Collet — NP
TG100 Series Inch
| D1 | 100TG standard | 100TGC standard — coolant | 100TGHP high precision | 100TGCHP high precision — coolant | 100TGNP milling — non-pullout | collet capacity max inch | collet capacity min inch | L9 | LWP |
| 3/32 | 100TG0094 | — | — | — | — | .0940 | .0781 | .707 | — |
| 7/64 | 100TG0109 | — | — | — | — | .1090 | .0938 | .712 | — |
| 1/8 | 100TG0125 | — | — | — | — | .1250 | .1094 | .844 | — |
| 1/8 | — | — | 100TGHP0125 | — | — | .1250 | .1150 | .844 | — |
| 9/64 | 100TG0141 | — | — | — | — | .1410 | .1250 | .848 | — |
| 5/32 | 100TG0156 | — | — | — | — | .1563 | .1410 | .853 | — |
| 11/64 | 100TG0172 | — | — | — | — | .1720 | .1563 | .858 | — |
| 3/16 | — | — | 100TGHP0188 | — | — | .1875 | .1775 | .862 | — |
| 3/16 | 100TG0188 | — | — | — | — | .1880 | .1719 | .862 | — |
| 13/64 | 100TG0203 | — | — | — | — | .2030 | .1875 | .867 | — |
(continued)
