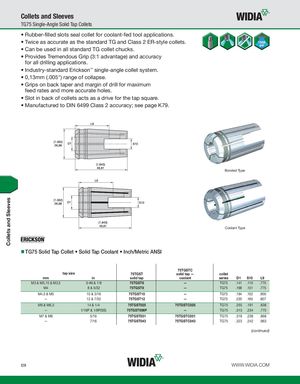

Collets and Sleeves TG75 Single-Angle Solid Tap Collets • Rubber-filled slots seal collet for coolant-fed tool applications. • Twice as accurate as the standard TG and Class 2 ER-style collets. • Can be used in all standard TG collet chucks. • Provides Tremendous Grip (3:1 advantage) and accuracy for all drilling applications. • Industry-standard Erickson™ single-angle collet system. • 0,13mm (.005") range of collapse. • Grips on back taper and margin of drill for maximum feed rates and more accurate holes. • Slot in back of collets acts as a drive for the tap square. • Manufactured to DIN 6499 Class 2 accuracy; see page K79. Bonded Type Coolant Type TG75 Solid Tap Collet • Solid Tap Coolant • Inch/Metric ANSI 75TGSTC tap size 75TGST solid tap — collet mm in solid tap coolant series D1 S10 L9 M3 & M3,15 & M3,5 0-#6 & 1/8 75TGST6 — TG75 .141 .110 .775 M4 8 & 5/32 75TGST8 — TG75 .168 .131 .775 M4,5 & M5 10 & 3/16 75TGST10 — TG75 .194 .152 .900 — 12 & 7/32 75TGST12 — TG75 .220 .165 .807 M6 & M6,3 14 & 1/4 75TGST025 75TGSTC025 TG75 .255 .191 .838 — 1/16P & 1/8P(SS) 75TGST006P — TG75 .313 .234 .775 M7 & M8 5/16 75TGST031 75TGSTC031 TG75 .318 .238 .868 — 7/16 75TGST043 75TGSTC043 TG75 .323 .242 .963 (continued) I28 WWW.WIDIA.COM Collets and Sleeves
