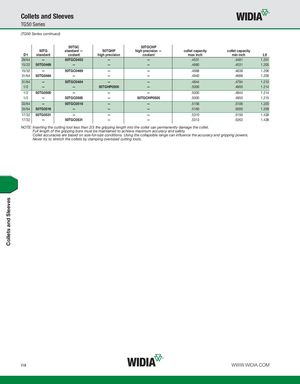

(TG50 Series continued)
| D1 | 50TG standard | 50TGC standard — coolant | 50TGHP high precision | 50TGCHP high precision — coolant | collet capacity max inch | collet capacity min inch | L9 |
| 29/64 | — | 50TGC0453 | — | — | .4531 | .4481 | 1.201 |
| 15/32 | 50TG0469 | — | — | — | .4680 | .4531 | 1.205 |
| 15/32 | — | 50TGC0469 | — | — | .4688 | .4638 | 1.206 |
| 31/64 | 50TG0484 | — | — | — | .4840 | .4688 | 1.209 |
| 31/64 | — | 50TGC0484 | — | — | .4844 | .4794 | 1.210 |
| 1/2 | — | — | 50TGHP0500 | — | .5000 | .4900 | 1.214 |
| 1/2 | 50TG0500 | — | — | — | .5000 | .4844 | 1.214 |
| 1/2 | — | 50TGC0500 | — | 50TGCHP0500 | .5000 | .4950 | 1.215 |
| 33/64 | — | 50TGC0516 | — | — | .5156 | .5106 | 1.220 |
| 33/64 | 50TG0516 | — | — | — | .5160 | .5000 | 1.209 |
| 17/32 | 50TG0531 | — | — | — | .5310 | .5156 | 1.438 |
| 17/32 | — | 50TGC0531 | — | — | .5313 | .5263 | 1.438 |
NOTE: Inserting the cutting tool less than 2/3 the gripping length into the collet can permanently damage the collet. Full length of the gripping bore must be maintained to achieve maximum accuracy and safety. Collet accuracies are based on size-for-size conditions. Using the collapsible range can influence the accuracy and gripping powers. Never try to stretch the collets by clamping oversized cutting tools.
