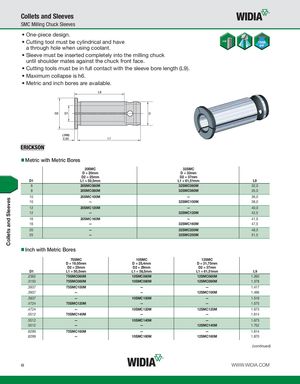

Collets and Sleeves SMC Milling Chuck Sleeves • One-piece design. • Cutting tool must be cylindrical and have a through hole when using coolant. • Sleeve must be inserted completely into the milling chuck until shoulder mates against the chuck front face. • Cutting tools must be in full contact with the sleeve bore length (L9). • Maximum collapse is h6. • Metric and inch bores are available. Metric with Metric Bores 20SMC 32SMC D = 20mm D = 32mm D2 = 25mm D2 = 37mm D1 L1 = 50,5mm L1 = 61,51mm L9 6 20SMC060M 32SMC060M 32,0 8 20SMC080M 32SMC080M 35,0 10 20SMC100M — 36,0 10 — 32SMC100M 38,0 12 20SMC120M — 40,0 12 — 32SMC120M 42,5 16 20SMC160M — 41,0 16 — 32SMC160M 47,5 20 — 32SMC200M 48,5 25 — 32SMC250M 51,5 Inch with Metric Bores 75SMC 10SMC 12SMC D = 19,05mm D = 25,4mm D = 31,75mm D2 = 25mm D2 = 29mm D2 = 37mm D1 L1 = 50,5mm L1 = 58,5mm L1 = 61,51mm L9 .2362 75SMC060M 10SMC060M 12SMC060M 1.260 .3150 75SMC080M 10SMC080M 12SMC080M 1.378 .3937 75SMC100M — — 1.417 .3937 — — 12SMC100M 1.496 .3937 — 10SMC100M — 1.516 .4724 75SMC120M — — 1.575 .4724 — 10SMC120M 12SMC120M 1.673 .5512 75SMC140M — — 1.614 .5512 — 10SMC140M — 1.673 .5512 — — 12SMC140M 1.752 .6299 75SMC160M — — 1.614 .6299 — 10SMC160M 12SMC160M 1.870 (continued) I8 WWW.WIDIA.COM Collets and Sleeves
