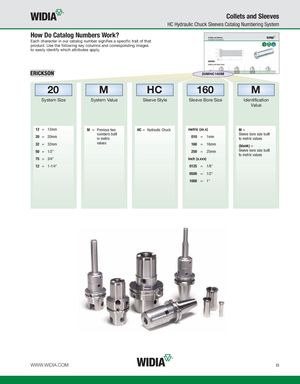

HC Hydraulic Chuck Sleeves Catalog Numbering System
How Do Catalog Numbers Work?
Each character in our catalog number signifies a specific trait of that product. Use the following key columns and corresponding images to easily identify which attributes apply.
20MHC160M
20 M HC 160 M
System Size System Value Sleeve Style Sleeve Bore Size Identification
Value
| 12 | = 12mm | M = Previous two | HC = Hydraulic Chuck metric (xx.x) | M = | |
| numbers built | Sleeve bore size built | ||||
| 20 | = 20mm | in metric | 010 | = 1mm | to metric values |
| 32 | = 32mm | values | 160 | = 16mm | |
| (blank) = | |||||
| 50 | = 1/2" | 250 | = 25mm | Sleeve bore size built | |
| to metric values | |||||
| 75 | = 3/4" | inch (x.xxx) | |||
| 12 | = 1-1/4" | 0125 | = 1/8" |
0500 = 1/2" 1000 = 1"
