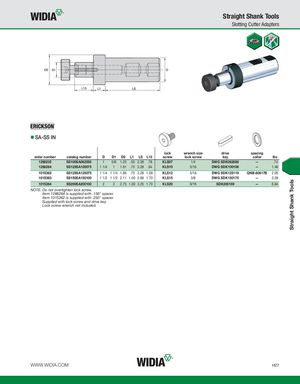

SA-SS IN
lock wrench size drive spacing
| order number | catalog number | D | D1 | D2 | L1 | LS L13 | screw | lock screw | key collar | lbs | |
| 1288235 | SS100SA062050 | 1 | 5/8 | 1.25 | .50 2.28 | .78 | KLS07 | 1/4 | DWG SDK062088 | — | .74 |
| 1288264 | SS125SA100075 | 1 1/4 | 1 | 1.61 | .75 2.28 | .94 | KLS10 | 5/16 | DWG SDK100106 | — | 1.46 |
| 1015362 | SS125SA125075 | 1 1/4 1 1/4 1.86 | .75 2.28 1.09 | KLS12 | 5/16 | DWG SDK125119 | QNB-80617B | 2.05 | |||
| 1015363 | SS150SA150100 | 1 1/2 1 1/2 2.11 1.00 2.69 1.70 | KLS15 | 3/8 | DWG SDK150175 | — | 3.28 | ||||
| 1015384 | SS200SA200100 | 2 | 2 | 2.75 1.00 3.25 1.70 | KLS20 | 9/16 | SDK200169 — | 6.64 |
NOTE: Do not overtighten lock screw. Item 1288264 is supplied with .156" spacer. Item 1015362 is supplied with .250" spacer. Supplied with lock screw and drive key.
Lock screw wrench not included.
