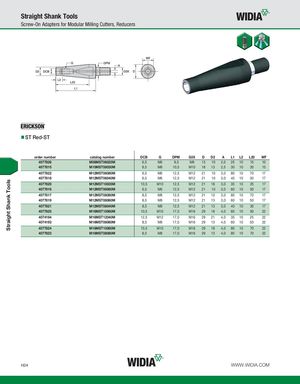

Screw-On Adapters for Modular Milling Cutters, Reducers
ST Red-ST
| order number | catalog number | DCB | G | DPM | G3X | D | D2 | A | L1 | L2 | L20 | WF |
| 4077826 | M08MST06025M | 6,5 | M6 | 8,5 | M8 | 13 | 10 | 2,0 | 25 | 10 | 15 | 10 |
| 4077815 | M10MST08030M | 8,5 | M8 | 10,5 | M10 | 18 | 13 | 2,5 | 30 | 10 | 20 | 15 |
| 4077822 | M12MST06080M | 6,5 | M6 | 12,5 | M12 | 21 | 10 | 3,0 | 80 | 10 | 70 | 17 |
| 4077818 | M12MST06040M | 6,5 | M6 | 12,5 | M12 | 21 | 10 | 3,0 | 40 | 10 | 30 | 17 |
