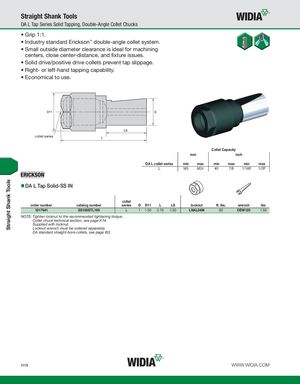

DA L Tap Series Solid Tapping, Double-Angle Collet Chucks
- Grip 1:1.
- Industry standard Erickson™ double-angle collet system.
- Small outside diameter clearance is ideal for machining centers, close center-distance, and fixture issues.
- Solid drive/positive drive collets prevent tap slippage.
- Right- or left-hand tapping capability.
- Economical to use.
collet series
DA L Tap Solid-SS IN
Collet Capacity mm inch
| DA L collet series | min | max | min | max | min | max | |
| L | M5 | M24 | #0 | 7/8 | 1/16P | 1/2P |
collet
| order number | catalog number | series | D | D11 | L | LS | locknut | ft. lbs. | wrench | lbs | |
| 1017941 | SS100STL169 | L | 1 | 1.50 | 3.19 | 1.50 | LNAL04M | 60 | OEW125 | 1.59 |
NOTE: Tighten locknut to the recommended tightening torque. Collet chuck technical section, see page K74. Supplied with locknut. Locknut wrench must be ordered separately.
DA standard straight-bore collets, see page I63.
