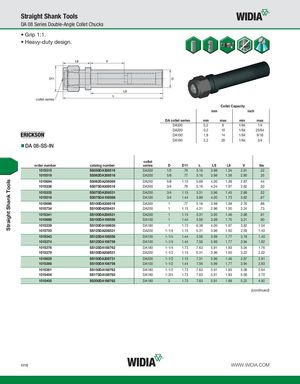

- Grip 1:1.
- Heavy-duty design.
collet series
DA 08-SS-IN
Collet Capacity mm inch
| DA collet series | min | max | min | max | |
| DA300 | 0,2 | 6 | 1/64 | 1/4 | |
| DA200 | 0,2 | 10 | 1/64 | 25/64 | |
| DA100 | 1,8 | 14 | 1/64 | 9/16 | |
| DA180 | 2,2 | 20 | 1/64 | 3/4 |
| order number | catalog number | collet series | D | D11 | L | LS | L9 | V | lbs |
| 1015310 | SS050DA308516 | DA300 | 1/2 | .79 | 5.16 | 3.98 | 1.34 | 2.91 | .22 |
| 1015519 | SS062DA308516 | DA300 | 5/8 | .77 | 5.16 | 3.98 | 1.38 | 2.80 | .35 |
| 1015694 | SS062DA208569 | DA200 | 5/8 | 1.15 | 5.69 | 4.00 | 1.38 | 2.87 | .44 |
| 1015336 | SS075DA308516 | DA300 | 3/4 | .79 | 5.16 | 4.24 | 1.97 | 2.62 | .50 |
| 1015335 | SS075DA208531 | DA200 | 3/4 | 1.15 | 5.31 | 3.96 | 1.45 | 2.68 | .52 |
| 1015518 | SS075DA108588 | DA100 | 3/4 | 1.44 | 5.88 | 4.00 | 1.73 | 3.62 | .67 |
| 1015696 | SS100DA308516 | DA300 | 1 | .77 | 5.16 | 3.98 | 1.38 | 2.76 | .88 |
| 1015734 | SS100DA208431 | DA200 | 1 | 1.15 | 4.31 | 2.96 | 1.50 | 2.24 | .73 |
| 1015341 | SS100DA208531 | DA200 | 1 | 1.15 | 5.31 | 3.95 | 1.46 | 2.68 | .91 |
| 1015698 | SS100DA108556 | DA100 | 1 | 1.44 | 5.56 | 3.99 | 1.75 | 3.21 | .90 |
| 1015339 | SS100DA188638 | DA180 | 1 | 1.73 | 6.38 | 4.00 | 1.97 | 3.82 | 1.04 |
| 1015703 | SS125DA208531 | DA200 | 1-1/4 | 1.15 | 5.31 | 3.96 | 1.50 | 2.59 | 1.40 |
| 1015343 | SS125DA108556 | DA100 | 1-1/4 | 1.44 | 5.56 | 3.99 | 1.77 | 3.19 | 1.40 |
| 1015374 | SS125DA108756 | DA100 | 1-1/4 | 1.44 | 7.56 | 5.99 | 1.77 | 3.94 | 1.92 |
| 1015376 | SS125DA188762 | DA180 | 1-1/4 | 1.73 | 7.63 | 5.91 | 1.93 | 5.04 | 1.76 |
| 1015379 | SS150DA208531 | DA200 | 1-1/2 | 1.15 | 5.31 | 3.96 | 1.50 | 3.22 | 2.02 |
| 1015629 | SS150DA208731 | DA200 | 1-1/2 | 1.15 | 7.31 | 5.96 | 1.46 | 2.67 | 2.91 |
| 1015380 | SS150DA108756 | DA100 | 1-1/2 | 1.44 | 7.56 | 5.99 | 1.77 | 3.94 | 2.83 |
| 1015381 | SS150DA188762 | DA180 | 1-1/2 | 1.73 | 7.63 | 5.91 | 1.93 | 5.08 | 2.64 |
| 1015404 | SS175DA188762 | DA180 | 1-3/4 | 1.73 | 7.63 | 5.91 | 1.93 | 5.08 | 3.70 |
| 1015405 | SS200DA188762 | DA180 | 2 | 1.73 | 7.63 | 5.91 | 1.89 | 5.22 | 4.92 |
(continued)
