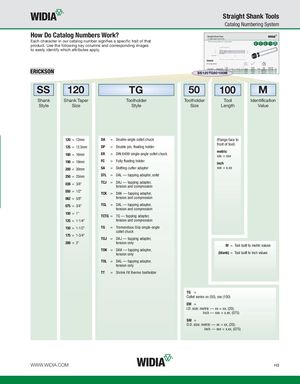

How Do Catalog Numbers Work?
Each character in our catalog number signifies a specific trait of that product. Use the following key columns and corresponding images to easily identify which attributes apply.
SS120TG50100M
| SS | 120 | TG | 50 | 100 | M | |||||
| Shank | Shank Taper | Toolholder | Toolholder | Tool | Identification | |||||
| Style | Size | Style | Size | Length | Value |
| 120 = 12mm | DA | = Double-angle collet chuck | |
| 125 = 12,5mm | DP | = Double pin, floating holder | |
| 160 = 16mm | ER | = DIN 6499 single-angle collet chuck | |
| 190 = 19mm | FC | = Fully floating holder | |
| 200 = 20mm | SA | = Slotting cutter adapter | |
| STL | = DAL — tapping adapter, solid | ||
| 250 = 25mm | |||
| TCJ | = DAJ — tapping adapter, | ||
| 038 = 3/8" | |||
| tension and compression | |||
| 050 = 1/2" | |||
| TCK | = DAK — tapping adapter, | ||
| 062 = 5/8" | tension and compression | ||
| 075 = 3/4" | TCL | = DAL — tapping adapter, | |
| tension and compression | |||
| 100 = 1" | |||
| TCTG = TG — tapping adapter, | |||
| 125 = 1-1/4" | tension and compression | ||
| 150 = 1-1/2" | TG | = Tremendous Grip single-angle |
collet chuck 175 = 1-3/4" TOJ = DAJ — tapping adapter, 200 = 2" tension only
TOK = DAK — tapping adapter, tension only TOL = DAL — tapping adapter, tension only TT = Shrink Fit thermo toolholder
(Flange face to front of tool) metric xxx = xxx inch xxx = x.xx
M = Tool built to metric values (blank) = Tool built to inch values
TG = Collet series xx (50), xxx (100) EM = I.D. size: metric — xx = xx, (20); inch — xxx = x.xx, (075) SM = O.D. size: metric — xx = xx, (20); inch — xxx = x.xx, (075)
