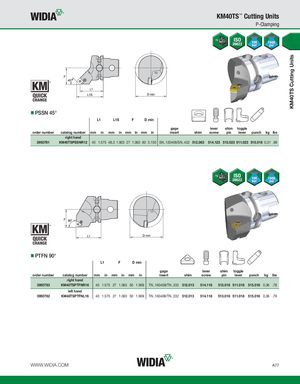

KM40TS Cutting Units KM40TS™ Cutting Units P-Clamping PSSN 45° L1 L1S F D min gage lever shim toggle order number catalog number mm in mm in mm in mm in insert shim screw pin lever punch kg lbs right hand 3950781 KM40TSPSSNR12 40 1.575 48,3 1.903 27 1.063 80 3.150 SN..120408/SN..432 512.063 514.123 513.023 511.023 515.018 0,31 .69 PTFN 90° L1 F D min gage lever shim toggle order number catalog number mm in mm in mm in insert shim screw pin lever punch kg lbs right hand 3950783 KM40TSPTFNR16 40 1.575 27 1.063 50 1.969 TN..160408/TN..332 512.013 514.118 513.018 511.018 515.018 0,36 .78 left hand 3950782 KM40TSPTFNL16 40 1.575 27 1.063 50 1.969 TN..160408/TN..332 512.013 514.118 513.018 511.018 515.018 0,36 .79 WWW.WIDIA.COM A77
