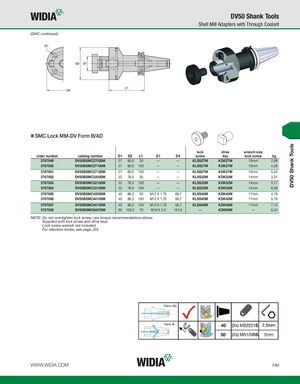

(SMC continued)
SMC Lock MM-DV Form B/AD
lock drive wrench size
| order number | catalog number | D1 | D2 | L1 | G1 | D4 | screw | lock screw key | kg | ||
| 3767849 | DV50BSMC27035M | 27 | 60,0 | 35 | — | — | KLSS27M | KDK27M | 10mm | 2,98 | |
| 3767850 | DV50BSMC27100M | 27 | 60,0 | 100 | — | — | KLSS27M | KDK27M | 10mm | 4,26 | |
| 3767851 | DV50BSMC27150M | 27 | 60,0 | 150 | — | — | KLSS27M | KDK27M | 10mm | 5,24 | |
| 3767852 | DV50BSMC32035M | 32 | 78,0 | 35 | — | — | KLSS32M | KDK32M | 14mm | 3,31 | |
| 3767853 | DV50BSMC32100M | 32 | 78,0 | 100 | — | — | KLSS32M | KDK32M | 14mm | 5,17 | |
| 3767854 | DV50BSMC32150M | 32 | 78,0 | 150 | — | — | KLSS32M | KDK32M | 14mm | 6,58 | |
| 3767855 | DV50BSMC40050M | 40 | 89,3 | 50 | M12 X 1.75 | 66,7 | KLSS40M | KDK40M | 17mm | 4,18 | |
| 3767856 | DV50BSMC40100M | 40 | 89,3 | 100 | M12 X 1.75 | 66,7 | KLSS40M | KDK40M | 17mm | 5,76 | |
| 3767857 | DV50BSMC40150M | 40 | 89,3 | 150 | M12 X 1.75 | 66,7 | KLSS40M | KDK40M | 17mm | 7,12 | |
| 3767858 | DV50BSMC60070M | 60 | 129,0 | 70 | M16 X 2.0 | 101,6 | — KDK60M | — | 6,24 |
NOTE: Do not overtighten lock screw; use torque recommendations above. Supplied with lock screw and drive keys. Lock screw wrench not included. For retention knobs, see page J33.
