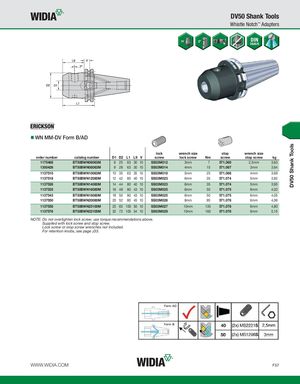

WN MM-DV Form B/AD
| wrench size lock | stop | wrench size | |||||||
| order number | catalog number | D1 D2 L1 L9 V | screw lock screw | Nm | screw | stop screw | kg | ||
| 1175468 | BT50BWN06063M | 6 25 | 63 30 10 | SS03M012 | 3mm | 7 | 571.060 | 2,5mm | 3,63 |
| 1300426 | BT50BWN08063M | 8 28 | 63 30 10 | SS03M014 | 4mm | 15 | 571.067 | 3mm | 3,64 |
| 1137510 | BT50BWN10063M | 10 35 | 63 35 10 | SS03M018 | 5mm | 25 | 571.068 | 4mm | 3,69 |
| 1137518 | BT50BWN12080M | 12 42 | 80 40 10 | SS03M023 | 6mm | 35 | 571.074 | 5mm | 3,92 |
| 1137526 | BT50BWN14080M | 14 44 | 80 40 10 | SS03M023 | 6mm | 35 | 571.074 | 5mm | 3,95 |
| 1137535 | BT50BWN16080M | 16 48 | 80 43 10 | SS03M025 | 6mm | 50 | 571.075 | 6mm | 4,02 |
| 1137543 | BT50BWN18080M | 18 50 | 80 43 10 | SS03M025 | 6mm | 50 | 571.075 | 6mm | 4,05 |
| 1137550 | BT50BWN20080M | 20 52 | 80 45 10 | SS03M026 | 8mm | 95 | 571.076 | 6mm | 4,06 |
| 1137558 | BT50BWN25100M | 25 65 100 50 10 | SS03M027 | 10mm | 135 | 571.076 | 6mm | 4,80 | |
| 1137576 | BT50BWN32105M | 32 72 105 54 10 | SS03M029 | 10mm | 160 | 571.076 | 6mm | 5,15 |
NOTE: Do not overtighten lock screw; use torque recommendations above. Supplied with lock screw and stop screw. Lock screw or stop screw wrenches not included. For retention knobs, see page J33.
