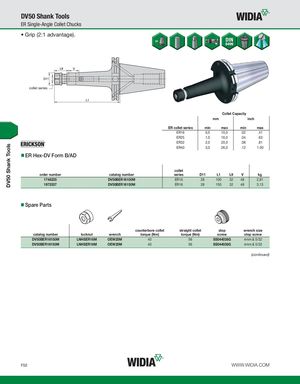

- Grip (2:1 advantage).
collet series
Collet Capacity mm inch
| ER collet series | min | max | min | max | |
| ER16 | 0,5 | 10,0 | .02 | .41 | |
| ER25 | 1,0 | 16,0 | .04 | .63 | |
| ER32 | 2,0 | 20,0 | .08 | .81 | |
| ER40 | 3,0 | 26,0 | .12 | 1.00 |
ER Hex-DV Form B/AD
collet
| order number | catalog number | series | D11 | L1 | L9 | V | kg | |
| 1748235 | DV50BER16100M | ER16 | 28 | 100 | 32 | 48 | 2,81 | |
| 1972537 | DV50BER16150M | ER16 | 28 | 150 | 32 | 48 | 3,13 |
Spare Parts
| counterbore collet | straight collet | stop | wrench size | ||||||||
| catalog number | locknut | wrench | torque (Nm) | torque (Nm) | screw | stop screw | |||||
| DV50BER16100M | LNHSER16M | OEW25M | 40 | 56 | SS044038G | 4mm & 5/32 | |||||
| DV50BER16150M | LNHSER16M | OEW25M | 40 | 56 | SS044038G | 4mm & 5/32 |
(continued)
