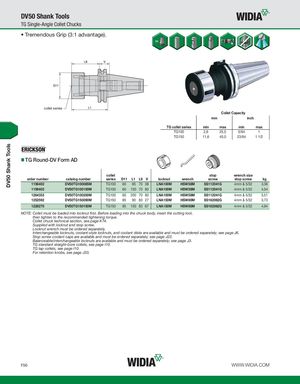

Каталог Widia инструментальная оснастка - страница 830
Навигация
Каталог Widia достижения 2021
Брошюра Widia решения для аэрокосмической промышленности
Брошюра Widia техническое руководство
Каталог Widia токарный инструмент 2020
Каталог Widia цельные концевые фрезы
Каталог Widia техническое руководство по разверткам
- Tremendous Grip (3:1 advantage).
collet series Collet Capacity mm inch
| TG collet series | min | max | min | max | |
| TG100 | 2,6 | 25,5 | 5/64 | 1 | |
| TG150 | 11,6 | 40,0 | 23/64 | 1 1/2 |
TG Round-DV Form AD
| order number | catalog number | collet series | D11 | L1 | L9 V | locknut | wrench | stop screw | wrench size stop screw | kg |
| 1156402 | DV50TG100085M | TG100 | 60 | 85 | 70 38 | LNA100M | HSW58M | SS112041G | 4mm & 5/32 | 3,36 |
| 1156403 | DV50TG100150M | TG100 | 60 | 150 | 70 80 | LNA100M | HSW58M | SS112041G | 4mm & 5/32 | 4,54 |
| 1264353 | DV50TG100200M | TG100 | 60 | 200 | 70 80 | LNA100M | HSW58M | SS112041G | 4mm & 5/32 | 5,51 |
| 1252592 | DV50TG150090M | TG150 | 85 | 90 | 83 27 | LNA150M | HSW80M | SS162062G | 4mm & 5/32 | 3,73 |
| 1228270 | DV50TG150150M | TG150 | 85 | 150 | 83 67 | LNA150M | HSW80M | SS162062G | 4mm & 5/32 | 4,94 |
NOTE: Collet must be loaded into locknut first. Before loading into the chuck body, insert the cutting tool, then tighten to the recommended tightening torque. Collet chuck technical section, see page K74. Supplied with locknut and stop screw. Locknut wrench must be ordered separately. Interchangeable locknuts, coolant-style locknuts, and coolant disks are available and must be ordered separately; see page J6. Stop screw coolant caps are available and must be ordered separately; see page J22. Balanceable/interchangeable locknuts are available and must be ordered separately; see page J3. TG standard straight-bore collets, see page I10. TG tap collets, see page I10. For retention knobs, see page J33.
