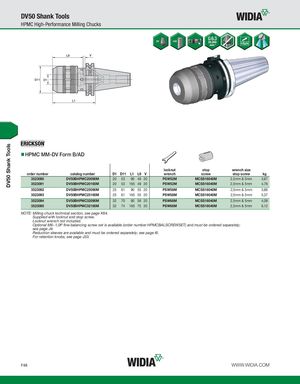

Каталог Widia инструментальная оснастка - страница 828
Навигация
Каталог Widia достижения 2021
Брошюра Widia решения для аэрокосмической промышленности
Брошюра Widia техническое руководство
Каталог Widia токарный инструмент 2020
Каталог Widia цельные концевые фрезы
Каталог Widia техническое руководство по разверткам
HPMC MM-DV Form B/AD
locknut stop wrench size
| order number | catalog number | D1 D11 | L1 L9 V | wrench | screw stop screw | kg | ||
| 3523090 | DV50BHPMC20090M | 20 | 53 | 90 49 20 | PSW52M | MCSS16040M | 2,5mm & 5mm | 3,67 |
| 3523091 | DV50BHPMC20165M | 20 | 53 | 165 49 20 | PSW52M | MCSS16040M | 2,5mm & 5mm | 4,76 |
| 3523092 | DV50BHPMC25090M | 25 | 61 | 90 55 20 | PSW58M | MCSS16040M | 2,5mm & 5mm | 3,86 |
| 3523093 | DV50BHPMC25165M | 25 | 61 | 165 55 20 | PSW58M | MCSS16040M | 2,5mm & 5mm | 5,37 |
| 3523094 | DV50BHPMC32090M | 32 | 70 | 90 58 20 | PSW68M | MCSS16040M | 2,5mm & 5mm | 4,08 |
| 3523095 | DV50BHPMC32165M | 32 | 74 | 165 75 20 | PSW68M | MCSS16040M | 2,5mm & 5mm | 6,12 |
NOTE: Milling chuck technical section, see page K64. Supplied with locknut and stop screw. Locknut wrench not included. Optional M6~1,0P fine-balancing screw set is available (order number HPMCBALSCREWSET) and must be ordered separately; see page J4. Reduction sleeves are available and must be ordered separately; see page I6. For retention knobs, see page J33.
