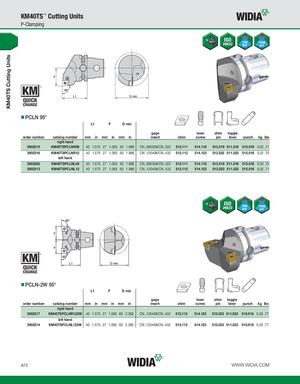

KM40TS Cutting Units KM40TS™ Cutting Units P-Clamping PCLN 95° L1 F D min gage lever shim toggle order number catalog number mm in mm in mm in insert shim screw pin lever punch kg lbs right hand 3902315 KM40TSPCLNR09 40 1.575 27 1.063 50 1.969 CN..090308/CN..322 512.111 514.118 513.019 511.018 515.018 0,32 .71 3902316 KM40TSPCLNR12 40 1.575 27 1.063 50 1.969 CN..120408/CN..432 512.112 514.123 513.023 511.023 515.018 0,32 .70 left hand 3902262 KM40TSPCLNL09 40 1.575 27 1.063 50 1.969 CN..090308/CN..322 512.111 514.118 513.019 511.018 515.018 0,33 .72 3902313 KM40TSPCLNL12 40 1.575 27 1.063 50 1.969 CN..120408/CN..432 512.112 514.123 513.023 511.023 515.018 0,32 .71 PCLN-2W 95° L1 F D min gage lever shim toggle order number catalog number mm in mm in mm in insert shim screw pin lever punch kg lbs right hand 3902317 KM40TSPCLNR122W 40 1.575 27 1.063 60 2.362 CN..120408/CN..432 512.112 514.123 513.023 511.023 515.018 0,35 .77 left hand 3902314 KM40TSPCLNL122W 40 1.575 27 1.063 60 2.362 CN..120408/CN..432 512.112 514.123 513.023 511.023 515.018 0,35 .77 A72 WWW.WIDIA.COM
