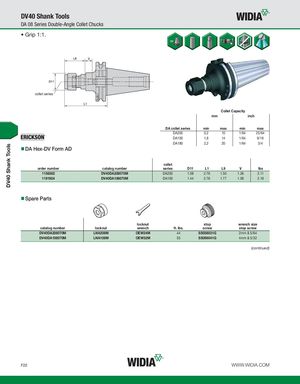

DV40 Shank Tools DV40 Shank Tools DA 08 Series Double-Angle Collet Chucks • Grip 1:1. collet series Collet Capacity mm inch DA collet series min max min max DA200 0,2 10 1/64 25/64 DA100 1,8 14 1/64 9/16 DA180 2,2 20 1/64 3/4 DA Hex-DV Form AD collet order number catalog number series D11 L1 L9 V lbs 1156382 DV40DA208070M DA200 1.08 2.76 1.50 1.26 2.11 1191924 DV40DA108070M DA100 1.44 2.76 1.77 1.58 2.19 Spare Parts locknut stop wrench size catalog number locknut wrench ft. lbs. screw stop screw DV40DA208070M LNA208M OEW24M 44 SS038031G 2mm & 5/64 DV40DA108070M LNA108M OEW32M 55 SS056041G 4mm & 5/32 (continued) F22 WWW.WIDIA.COM
