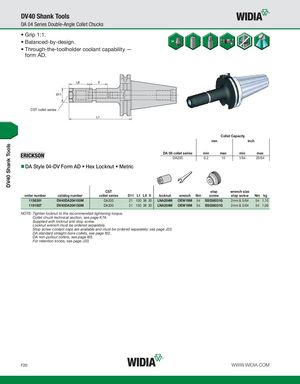

- Grip 1:1.
- Balanced-by-design.
- Through-the-toolholder coolant capability — form AD.
CST collet series
Collet Capacity mm inch
| DA 08 collet series | min | max | min | max | |
| DA200 | 0,2 | 10 | 1/64 | 25/64 |
DA Style 04-DV Form AD Hex Locknut Metric
CST stop wrench size
| order number | catalog number | collet series | D11 L1 L9 V | locknut | wrench | Nm | screw | stop screw | Nm kg | |||
| 1156381 | DV40DA204100M | DA200 | 21 100 38 30 | LNA204M | OEW19M | 54 | SS038031G | 2mm & 5/64 | 54 1,10 | |||
| 1191927 | DV40DA204150M | DA200 | 21 150 38 30 | LNA204M | OEW19M | 54 | SS038031G | 2mm & 5/64 | 54 1,06 |
NOTE: Tighten locknut to the recommended tightening torque. Collet chuck technical section, see page K74. Supplied with locknut and stop screw. Locknut wrench must be ordered separately.
Stop screw coolant caps are available and must be ordered separately; see page J22. DA standard straight-bore collets, see page I62. DA non-pullout collets, see page I65. For retention knobs, see page J33.
