Cutting Tool Shank Requirements metric (ISO standard) cutting tool shank diameter tolerance
| 6 | h6 | 0,000/-0,008 | |
| 8 & 10 | h6 | 0,000/-0,009 | |
| 12, 14, 16, & 18 | h6 | 0,000/-0,011 | |
| 20 | h6 | 0,000/-0,013 |

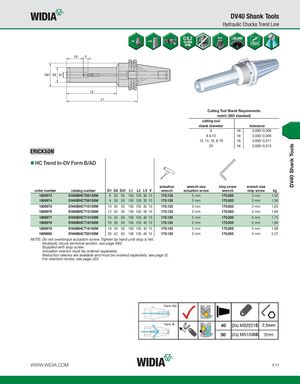

HC Trend In-DV Form B/AD
| order number | catalog number | D1 D2 | D21 | L1 L2 L9 V | actuation wrench | wrench size actuation screw | stop screw wrench | wrench size stop screw | kg |
| 1809973 | DV40BHCT06150M | 6 26 | 50 | 150 105 30 10 | 170.135 | 5 mm | 170.003 | 3 mm | 1,50 |
| 1809974 | DV40BHCT08150M | 8 28 | 50 | 150 105 30 10 | 170.135 | 5 mm | 170.003 | 3 mm | 1,56 |
| 1809975 | DV40BHCT10150M | 10 30 | 50 | 150 105 35 10 | 170.135 | 5 mm | 170.003 | 3 mm | 1,63 |
| 1809976 | DV40BHCT12150M | 12 32 | 50 | 150 105 35 10 | 170.135 | 5 mm | 170.003 | 3 mm | 1,69 |
| 1809977 | DV40BHCT14150M | 14 34 | 50 | 150 105 40 10 | 170.135 | 5 mm | 170.005 | 5 mm | 1,73 |
| 1809978 | DV40BHCT16150M | 16 38 | 50 | 150 105 40 10 | 170.135 | 5 mm | 170.005 | 5 mm | 1,90 |
| 1809979 | DV40BHCT18150M | 18 40 | 50 | 150 105 40 10 | 170.135 | 5 mm | 170.005 | 5 mm | 1,98 |
| 1809980 | DV40BHCT20150M | 20 42 | 50 | 150 105 40 10 | 170.135 | 5 mm | 170.005 | 5 mm | 2,07 |
NOTE: Do not overtorque actuation screw. Tighten by hand until stop is felt. Hydraulic chuck technical section, see page K60. Supplied with stop screw. Actuation wrench must be ordered separately. Reduction sleeves are available and must be ordered separately; see page I2. For retention knobs, see page J33.
