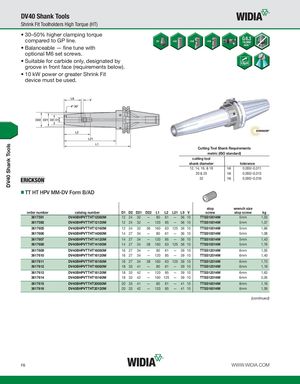

DV40 Shank Tools DV40 Shank Tools Shrink Fit Toolholders High Torque (HT) • 30–50% higher clamping torque compared to GP line. • Balanceable — fine tune with optional M6 set screws. • Suitable for carbide only, designated by groove in front face (requirements below). • 10 kW power or greater Shrink Fit device must be used. Cutting Tool Shank Requirements metric (ISO standard) cutting tool shank diameter tolerance 12, 14, 16, & 18 h6 0,000/-0,011 20 & 25 h6 0,000/-0,013 32 h6 0,000/-0,016 TT HT HPV MM-DV Form B/AD stop wrench size order number catalog number D1 D2 D21 D22 L1 L2 L21 L9 V screw stop screw kg 3617591 DV40BHPVTTHT12080M 12 24 32 — 80 61 — 36 10 TTSS10014M 5mm 1,03 3617592 DV40BHPVTTHT12120M 12 24 32 — 120 85 — 36 10 TTSS10014M 5mm 1,37 3617605 DV40BHPVTTHT12160M 12 24 32 36 160 63 125 36 10 TTSS10014M 5mm 1,66 3617606 DV40BHPVTTHT14080M 14 27 34 — 80 61 — 36 10 TTSS10014M 5mm 1,08 3617607 DV40BHPVTTHT14120M 14 27 34 — 120 85 — 36 10 TTSS10014M 5mm 1,43 3617608 DV40BHPVTTHT14160M 14 27 34 38 160 63 125 36 10 TTSS10014M 5mm 1,76 3617609 DV40BHPVTTHT16080M 16 27 34 — 80 61 — 39 10 TTSS12014M 6mm 1,05 3617610 DV40BHPVTTHT16120M 16 27 34 — 120 85 — 39 10 TTSS12014M 6mm 1,40 3617611 DV40BHPVTTHT16160M 16 27 34 38 160 63 125 39 10 TTSS12014M 6mm 1,73 3617612 DV40BHPVTTHT18080M 18 33 41 — 80 61 — 39 10 TTSS12014M 6mm 1,19 3617613 DV40BHPVTTHT18120M 18 33 42 — 120 85 — 39 10 TTSS12014M 6mm 1,63 3617614 DV40BHPVTTHT18160M 18 33 42 — 160 125 — 39 10 TTSS12014M 6mm 2,05 3617615 DV40BHPVTTHT20080M 20 33 41 — 80 61 — 41 10 TTSS16014M 8mm 1,16 3617616 DV40BHPVTTHT20120M 20 33 42 — 120 85 — 41 10 TTSS16014M 8mm 1,59 (continued) F6 WWW.WIDIA.COM
