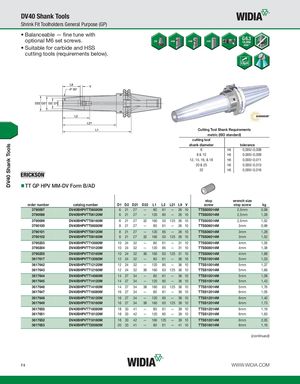

DV40 Shank Tools DV40 Shank Tools Shrink Fit Toolholders General Purpose (GP) • Balanceable — fine tune with optional M6 set screws. • Suitable for carbide and HSS cutting tools (requirements below). Cutting Tool Shank Requirements metric (ISO standard) cutting tool shank diameter tolerance 6 h6 0,000/-0,008 8 & 10 h6 0,000/-0,009 12, 14, 16, & 18 h6 0,000/-0,011 20 & 25 h6 0,000/-0,013 32 h6 0,000/-0,016 TT GP HPV MM-DV Form B/AD stop wrench size order number catalog number D1 D2 D21 D22 L1 L2 L21 L9 V screw stop screw kg 3790097 DV40BHPVTT06080M 6 21 27 — 80 61 — 26 10 TTSS05014M 2,5mm 0,99 3790098 DV40BHPVTT06120M 6 21 27 — 120 85 — 26 10 TTSS05014M 2,5mm 1,28 3790099 DV40BHPVTT06160M 6 21 27 32 160 50 125 26 10 TTSS05014M 2,5mm 1,52 3790100 DV40BHPVTT08080M 8 21 27 — 80 61 — 26 10 TTSS06014M 3mm 0,99 3790101 DV40BHPVTT08120M 8 21 27 — 120 85 — 26 10 TTSS06014M 3mm 1,28 3790102 DV40BHPVTT08160M 8 21 27 32 160 50 125 26 10 TTSS06014M 3mm 1,52 3790203 DV40BHPVTT10080M 10 24 32 — 80 61 — 31 10 TTSS08014M 4mm 1,05 3790204 DV40BHPVTT10120M 10 24 32 — 120 85 — 31 10 TTSS08014M 4mm 1,38 3790205 DV40BHPVTT10160M 10 24 32 36 160 63 125 31 10 TTSS08014M 4mm 1,68 3617617 DV40BHPVTT12080M 12 24 32 — 80 61 — 36 10 TTSS10014M 5mm 1,03 3617642 DV40BHPVTT12120M 12 24 32 — 120 85 — 36 10 TTSS10014M 5mm 1,37 3617643 DV40BHPVTT12160M 12 24 32 36 160 63 125 36 10 TTSS10014M 5mm 1,66 3617644 DV40BHPVTT14080M 14 27 34 — 80 61 — 36 10 TTSS10014M 5mm 1,08 3617645 DV40BHPVTT14120M 14 27 34 — 120 85 — 36 10 TTSS10014M 5mm 1,43 3617646 DV40BHPVTT14160M 14 27 34 38 160 63 125 36 10 TTSS10014M 5mm 1,76 3617647 DV40BHPVTT16080M 16 27 34 — 80 61 — 39 10 TTSS12014M 6mm 1,05 3617648 DV40BHPVTT16120M 16 27 34 — 120 85 — 39 10 TTSS12014M 6mm 1,40 3617649 DV40BHPVTT16160M 16 27 34 38 160 63 125 39 10 TTSS12014M 6mm 1,73 3617650 DV40BHPVTT18080M 18 33 41 — 80 61 — 39 10 TTSS12014M 6mm 1,19 3617651 DV40BHPVTT18120M 18 33 42 — 120 85 — 39 10 TTSS12014M 6mm 1,63 3617652 DV40BHPVTT18160M 18 33 42 — 160 125 — 39 10 TTSS12014M 6mm 2,05 3617653 DV40BHPVTT20080M 20 33 41 — 80 61 — 41 10 TTSS16014M 8mm 1,16 (continued) F4 WWW.WIDIA.COM
