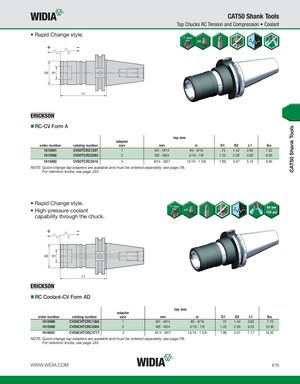

CAT50 Shank Tools CAT50 Shank Tools Tap Chucks RC Tension and Compression • Coolant • Rapid Change style. RC-CV Form A tap size adapter order number catalog number size mm in D1 D2 L1 lbs 1615981 CV50TCRC1297 1 M1 - M14 #0 - 9/16 .75 1.42 2.96 7.22 1615982 CV50TCRC2393 2 M5 - M24 5/16 - 7/8 1.22 2.09 3.86 8.00 1615983 CV50TCRC3516 3 M14 - M27 13/16 - 1 3/8 1.89 3.07 5.16 9.60 NOTE: Quick-change tap adapters are available and must be ordered separately; see page I76. For retention knobs, see page J33. • Rapid Change style. • High-pressure coolant capability through the chuck. RC Coolant-CV Form AD tap size adapter order number catalog number size mm in D1 D2 L1 lbs 1615989 CV50CHTCRC1382 1 M1 - M14 #0 - 9/16 .75 1.42 3.82 7.70 1615990 CV50CHTCRC2524 2 M5 - M24 5/16 - 7/8 1.22 2.09 5.23 10.30 1616001 CV50CHTCRC3717 3 M14 - M27 13/16 - 1 3/8 1.89 3.07 7.17 16.30 NOTE: Quick-change tap adapters are available and must be ordered separately; see page I76. For retention knobs, see page J33. WWW.WIDIA.COM E75
