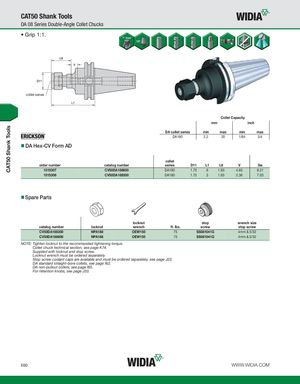

- Grip 1:1.
collet series
Collet Capacity mm inch
| DA collet series | min | max | min | max | |
| DA180 | 2,2 | 20 | 1/64 | 3/4 |
DA Hex-CV Form AD
collet
| order number | catalog number | series | D11 | L1 | L9 | V | lbs | |
| 1015307 | CV50DA188600 | DA180 | 1.73 | 6 | 1.93 | 4.65 | 8.21 | |
| 1015306 | CV50DA188300 | DA180 | 1.73 | 3 | 1.93 | 2.36 | 7.03 |
Spare Parts
| locknut | stop | wrench size | ||||
| catalog number | locknut | wrench | ft. lbs. | screw | stop screw | |
| CV50DA188300 | NPA188 | OEW150 | 75 | SS081041G | 4mm & 5/32 | |
| CV50DA188600 | NPA188 | OEW150 | 75 | SS081041G | 4mm & 5/32 |
NOTE: Tighten locknut to the recommended tightening torque. Collet chuck technical section, see page K74. Supplied with locknut and stop screw. Locknut wrench must be ordered separately.
Stop screw coolant caps are available and must be ordered separately; see page J22. DA standard straight-bore collets, see page I62. DA non-pullout collets, see page I65. For retention knobs, see page J33.
