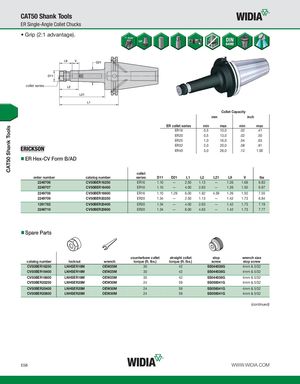

- Grip (2:1 advantage).
collet series
| m | m | Collet C | apacity inc | h | |
| ER collet series | min | max | min | max | |
| ER16 | 0,5 | 10,0 | .02 | .41 | |
| ER20 | 0,5 | 13,0 | .02 | .50 | |
| ER25 | 1,0 | 16,0 | .04 | .63 | |
| ER32 | 2,0 | 20,0 | .08 | .81 | |
| ER40 | 3,0 | 26,0 | .12 | 1.00 |
ER Hex-CV Form B/AD
| order number | catalog number | collet series | D11 | D21 | L1 | L2 | L21 | L9 | V | lbs |
| 2249706 | CV50BER16250 | ER16 | 1.10 | — | 2.50 | 1.13 | — | 1.26 | 1.69 | 6.83 |
| 2249707 | CV50BER16400 | ER16 | 1.10 | — | 4.00 | 2.63 | — | 1.26 | 1.50 | 6.97 |
| 2249708 | CV50BER16600 | ER16 | 1.10 | 1.29 | 6.00 | 1.92 | 4.59 | 1.26 | 1.50 | 7.55 |
| 2249709 | CV50BER20250 | ER20 | 1.34 | — | 2.50 | 1.13 | — | 1.42 | 1.73 | 6.84 |
| 1261782 | CV50BER20400 | ER20 | 1.34 | — | 4.00 | 2.63 | — | 1.42 | 1.73 | 7.19 |
| 2249710 | CV50BER20600 | ER20 | 1.34 | — | 6.00 | 4.63 | — | 1.42 | 1.73 | 7.77 |
Spare Parts
| catalog number | locknut | wrench | counterbore collet torque (ft. lbs.) | straight collet torque (ft. lbs.) | stop screw | wrench size stop screw |
| CV50BER16250 | LNHSER16M | OEW25M | 30 | 42 | SS044038G | 4mm & 5/32 |
| CV50BER16400 | LNHSER16M | OEW25M | 30 | 42 | SS044038G | 4mm & 5/32 |
| CV50BER16600 | LNHSER16M | OEW25M | 30 | 42 | SS044038G | 4mm & 5/32 |
| CV50BER20250 | LNHSER20M | OEW30M | 24 | 59 | SS056041G | 4mm & 5/32 |
| CV50BER20400 | LNHSER20M | OEW30M | 24 | 59 | SS056041G | 4mm & 5/32 |
| CV50BER20600 | LNHSER20M | OEW30M | 24 | 59 | SS056041G | 4mm & 5/32 |
(continued)
