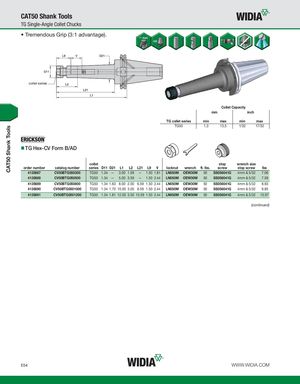

- Tremendous Grip (3:1 advantage).
collet series
Collet Capacity mm inch
| TG collet series | min | max | min | max | |
| TG50 | 1,3 | 13,5 | 1/32 | 17/32 |
TG Hex-CV Form B/AD
collet stop wrench size
| order number | catalog number | series D11 D21 | L1 | L2 L21 | L9 | V locknut | wrench | ft. lbs. | screw stop screw | lbs | |
| 4135687 | CV50BTG050300 | TG50 1.34 — | 3.00 1.59 | — | 1.50 1.81 | LN050M | OEW30M | 50 | SS056041G | 4mm & 5/32 | 7.06 |
| 4135688 | CV50BTG050500 | TG50 1.34 — | 5.00 3.59 | — | 1.50 2.44 | LN050M | OEW30M | 50 | SS056041G | 4mm & 5/32 | 7.58 |
| 4135689 | CV50BTG050800 | TG50 1.34 1.63 8.00 2.00 6.59 1.50 2.44 | LN050M | OEW30M | 50 | SS056041G | 4mm & 5/32 | 8.93 | |||
| 4135690 | CV50BTG0501000 | TG50 1.34 1.70 10.00 3.00 8.59 1.50 2.44 | LN050M | OEW30M | 50 | SS056041G | 4mm & 5/32 | 9.85 | |||
| 4135691 | CV50BTG0501200 | TG50 1.34 1.81 12.00 3.50 10.59 1.50 2.44 | LN050M | OEW30M | 50 | SS056041G | 4mm & 5/32 | 10.97 |
(continued)
