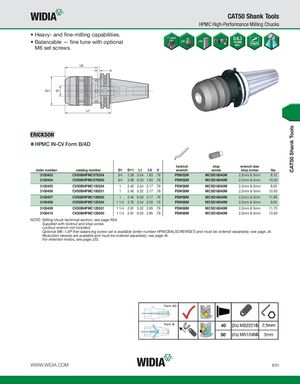

CAT50 Shank Tools CAT50 Shank Tools HPMC High-Performance Milling Chucks • Heavy- and fine-milling capabilities. • Balancable — fine tune with optional M6 set screws. HPMC IN-CV Form B/AD locknut stop wrench size order number catalog number D1 D11 L1 L9 V wrench screw stop screw lbs 3100403 CV50BHPMC075354 3/4 2.09 3.54 1.93 .79 PSW52M MCSS16040M 2,5mm & 5mm 8.10 3100404 CV50BHPMC075650 3/4 2.09 6.50 1.93 .79 PSW52M MCSS16040M 2,5mm & 5mm 10.50 3100405 CV50BHPMC100354 1 2.40 3.54 2.17 .79 PSW58M MCSS16040M 2,5mm & 5mm 8.50 3100406 CV50BHPMC100531 1 2.40 5.32 2.17 .79 PSW58M MCSS16040M 2,5mm & 5mm 10.50 3100407 CV50BHPMC100650 1 2.40 6.50 2.17 .79 PSW58M MCSS16040M 2,5mm & 5mm 11.85 3100408 CV50BHPMC125354 1 1/4 2.76 3.54 2.28 .79 PSW68M MCSS16040M 2,5mm & 5mm 9.00 3100409 CV50BHPMC125531 1 1/4 2.91 5.32 2.95 .79 PSW68M MCSS16040M 2,5mm & 5mm 11.70 3100410 CV50BHPMC125650 1 1/4 2.91 6.50 2.95 .79 PSW68M MCSS16040M 2,5mm & 5mm 13.50 NOTE: Milling chuck technical section, see page K64. Supplied with locknut and stop screw. Locknut wrench not included. Optional M6~1,0P fine-balancing screw set is available (order number HPMCBALSCREWSET) and must be ordered separately; see page J4. Reduction sleeves are available and must be ordered separately; see page I6. For retention knobs, see page J33. WWW.WIDIA.COM E51
