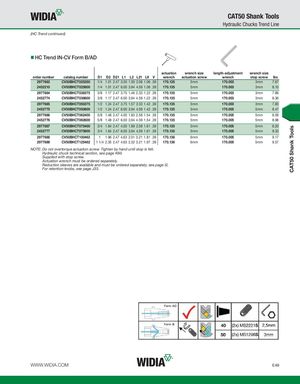

CAT50 Shank Tools CAT50 Shank Tools Hydraulic Chucks Trend Line (HC Trend continued) HC Trend IN-CV Form B/AD actuation wrench size length-adjustment wrench size order number catalog number D1 D2 D21 L1 L2 L21 L9 V wrench actuation screw wrench stop screw lbs 2977683 CV50BHCT025350 1/4 1.01 2.47 3.50 1.30 2.08 1.06 .39 170.135 5mm 170.003 3mm 7.67 2452210 CV50BHCT025600 1/4 1.01 2.47 6.00 3.94 4.59 1.06 .39 170.135 5mm 170.003 3mm 8.10 2977684 CV50BHCT038375 3/8 1.17 2.47 3.75 1.46 2.33 1.22 .39 170.135 5mm 170.003 3mm 7.89 2452774 CV50BHCT038600 3/8 1.17 2.47 6.00 3.94 4.59 1.22 .39 170.135 5mm 170.003 3mm 8.36 2977685 CV50BHCT050375 1/2 1.24 2.47 3.75 1.57 2.33 1.42 .39 170.135 5mm 170.003 3mm 7.83 2452775 CV50BHCT050600 1/2 1.24 2.47 6.00 3.94 4.59 1.42 .39 170.135 5mm 170.005 5mm 8.47 2977686 CV50BHCT062400 5/8 1.48 2.47 4.00 1.83 2.58 1.54 .39 170.135 5mm 170.005 5mm 8.09 2452776 CV50BHCT062600 5/8 1.48 2.47 6.00 3.94 4.59 1.54 .39 170.135 5mm 170.005 5mm 8.98 2977687 CV50BHCT075400 3/4 1.64 2.47 4.00 1.89 2.58 1.61 .39 170.135 5mm 170.005 5mm 8.20 2452777 CV50BHCT075600 3/4 1.64 2.47 6.00 3.94 4.59 1.61 .39 170.135 5mm 170.005 5mm 9.33 2977688 CV50BHCT100462 1 1.96 2.47 4.63 2.01 3.21 1.81 .39 170.136 6mm 170.005 5mm 9.17 2977689 CV50BHCT125462 1 1/4 2.35 2.47 4.63 2.32 3.21 1.97 .39 170.136 6mm 170.005 5mm 9.57 NOTE: Do not overtorque actuation screw. Tighten by hand until stop is felt. Hydraulic chuck technical section, see page K60. Supplied with stop screw. Actuation wrench must be ordered separately. Reduction sleeves are available and must be ordered separately; see page I2. For retention knobs, see page J33. WWW.WIDIA.COM E49
