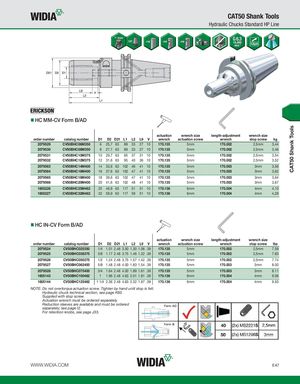

CAT50 Shank Tools CAT50 Shank Tools Hydraulic Chucks Standard HP Line HC MM-CV Form B/AD actuation wrench size length-adjustment wrench size order number catalog number D1 D2 D21 L1 L2 L9 V wrench actuation screw wrench stop screw kg 2079529 CV50BHC06M350 6 25,7 63 89 33 27 10 170.135 5mm 170.002 2,5mm 3,44 2079530 CV50BHC08M350 8 27,7 63 89 33 27 10 170.135 5mm 170.002 2,5mm 3,46 2079531 CV50BHC10M375 10 29,7 63 95 37 31 10 170.135 5mm 170.002 2,5mm 3,54 2079532 CV50BHC12M375 12 31,6 63 95 40 36 10 170.135 5mm 170.002 2,5mm 3,52 2079563 CV50BHC14M400 14 33,6 63 102 46 41 10 170.135 5mm 170.003 3mm 3,56 2079564 CV50BHC16M400 16 37,6 63 102 47 41 10 170.135 5mm 170.003 3mm 3,62 2079565 CV50BHC18M400 18 39,6 63 102 47 41 10 170.135 5mm 170.003 3mm 3,64 2079566 CV50BHC20M400 20 41,6 63 102 48 41 10 170.135 5mm 170.003 3mm 3,67 1605226 CV50BHC25M462 25 49,9 63 117 51 51 10 170.136 6mm 170.004 4mm 4,10 1605227 CV50BHC32M462 32 59,9 63 117 59 51 10 170.136 6mm 170.004 4mm 4,29 HC IN-CV Form B/AD actuation wrench size length-adjustment wrench size order number catalog number D1 D2 D21 L1 L2 L9 V wrench actuation screw wrench stop screw lbs 2079524 CV50BHC025350 1/4 1.01 2.48 3.50 1.30 1.06 .39 170.135 5mm 170.002 2,5mm 7.59 2079525 CV50BHC038375 3/8 1.17 2.48 3.75 1.46 1.22 .39 170.135 5mm 170.002 2,5mm 7.83 2079526 CV50BHC050375 1/2 1.24 2.48 3.75 1.57 1.42 .39 170.135 5mm 170.002 2,5mm 7.74 2079527 CV50BHC062400 5/8 1.48 2.48 4.00 1.83 1.54 .39 170.135 5mm 170.003 3mm 8.00 2079528 CV50BHC075400 3/4 1.64 2.48 4.00 1.89 1.61 .39 170.135 5mm 170.003 3mm 8.11 1605143 CV50BHC100462 1 1.96 2.48 4.63 2.01 1.81 .39 170.136 6mm 170.004 4mm 9.06 1605144 CV50BHC125462 1 1/4 2.36 2.48 4.63 2.32 1.97 .39 170.136 6mm 170.004 4mm 9.50 NOTE: Do not overtorque actuation screw. Tighten by hand until stop is felt. Hydraulic chuck technical section, see page K60. Supplied with stop screw. Actuation wrench must be ordered separately. Reduction sleeves are available and must be ordered separately; see page I2. For retention knobs, see page J33. WWW.WIDIA.COM E47
