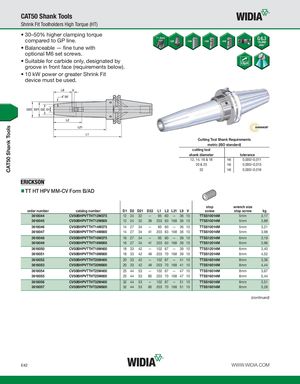

CAT50 Shank Tools CAT50 Shank Tools Shrink Fit Toolholders High Torque (HT) • 30–50% higher clamping torque compared to GP line. • Balanceable — fine tune with optional M6 set screws. • Suitable for carbide only, designated by groove in front face (requirements below). • 10 kW power or greater Shrink Fit device must be used. Cutting Tool Shank Requirements metric (ISO standard) cutting tool shank diameter tolerance 12, 14, 16 & 18 h6 0,000/-0,011 20 & 25 h6 0,000/-0,013 32 h6 0,000/-0,016 TT HT HPV MM-CV Form B/AD stop wrench size order number catalog number D1 D2 D21 D22 L1 L2 L21 L9 V screw stop screw kg 3618044 CV50BHPVTTHT12M375 12 24 32 — 95 60 — 36 10 TTSS10014M 5mm 3,17 3618045 CV50BHPVTTHT12M800 12 24 32 39 203 63 168 36 10 TTSS10014M 5mm 3,88 3618046 CV50BHPVTTHT14M375 14 27 34 — 95 60 — 36 10 TTSS10014M 5mm 3,21 3618047 CV50BHPVTTHT14M800 14 27 34 41 203 63 168 36 10 TTSS10014M 5mm 3,98 3618048 CV50BHPVTTHT16M375 16 27 34 — 95 60 — 39 10 TTSS12014M 6mm 3,19 3618049 CV50BHPVTTHT16M800 16 27 34 41 203 63 168 39 10 TTSS12014M 6mm 3,96 3618050 CV50BHPVTTHT18M400 18 33 42 — 102 67 — 39 10 TTSS12014M 6mm 3,40 3618051 CV50BHPVTTHT18M800 18 33 42 49 203 70 168 39 10 TTSS12014M 6mm 4,52 3618052 CV50BHPVTTHT20M400 20 33 42 — 102 67 — 41 10 TTSS16014M 8mm 3,36 3618053 CV50BHPVTTHT20M800 20 33 42 49 203 70 168 41 10 TTSS16014M 8mm 4,44 3618054 CV50BHPVTTHT25M400 25 44 53 — 102 67 — 47 10 TTSS16014M 8mm 3,67 3618055 CV50BHPVTTHT25M800 25 44 53 60 203 70 168 47 10 TTSS16014M 8mm 5,44 3618056 CV50BHPVTTHT32M400 32 44 53 — 102 67 — 51 10 TTSS16014M 8mm 3,51 3618057 CV50BHPVTTHT32M800 32 44 53 60 203 70 168 51 10 TTSS16014M 8mm 5,28 (continued) E42 WWW.WIDIA.COM
